Viewsonic PG707W Data Projector Standard Throw Projector 4000 ANSI Lumens DMD WXGA (1280×800) White

WXGA 1280 x 800, 4000 Lm, 20000 h, 22000:1, 16:10, DLP Lamp, USB, RJ45, AUDIO in/out, HDMI, VGA, 2.3 kg

---

The ViewSonic® PG707W projector features 4,000 lumens, WXGA 1280 x 800 native resolution, an intuitive, user-friendly design, and a sleek white chassis. Exclusive SuperColor™ technology offers a wide color gamut for beautiful image production in nearly any environment. An energy-saving SuperEco™ feature reduces power consumption and extends the lamp life by up to 20,000 hours. A 10W speaker delivers incredibly clear and audible sound, while a top lamp door enables easy access for lamp maintenance. The PG707W is the ideal high brightness projector for use in both classroom and corporate settings.

SUPERCOLOR: AMAZING COLOR ACCURACY
ViewSonic’s proprietary SuperColor™ Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.

BRIGHT IMAGES IN ANY ENVIRONMENT
Packed with 4,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in nearly any environment – even in rooms with high ambient light.

ENERGY-EFFICIENT SUPERECO ™
SuperEco™ mode allows users to dim projection brightness by up to 70%, thereby reducing the lamp’s power consumption while extending lamp life—a great energy-saving design that lowers the total cost of ownership (TCO).

NETWORK MONITORING & CONTROL
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.

CONVENIENT MOUNTING FLEXIBILITY
A 1.3x optical zoom lens provides more mounting flexibility over a standard lens so you can place your projector where you want and still get big, vivid images. For a perfectly proportioned picture every time, horizontal/vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images.

REDUCED INPUT LATENCY
This projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.

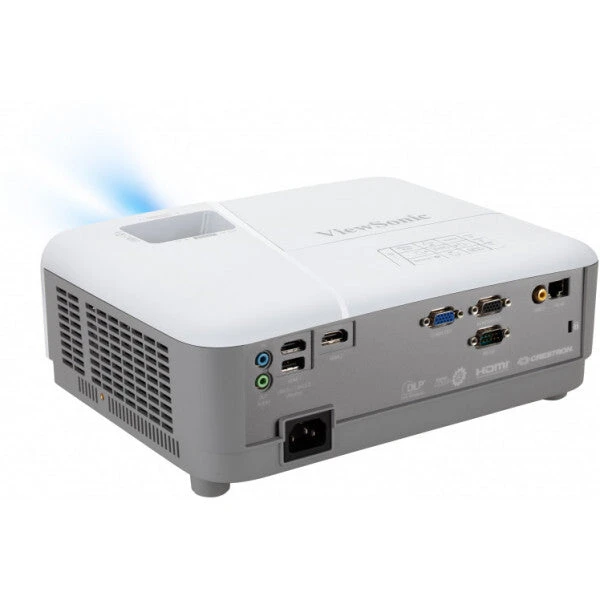

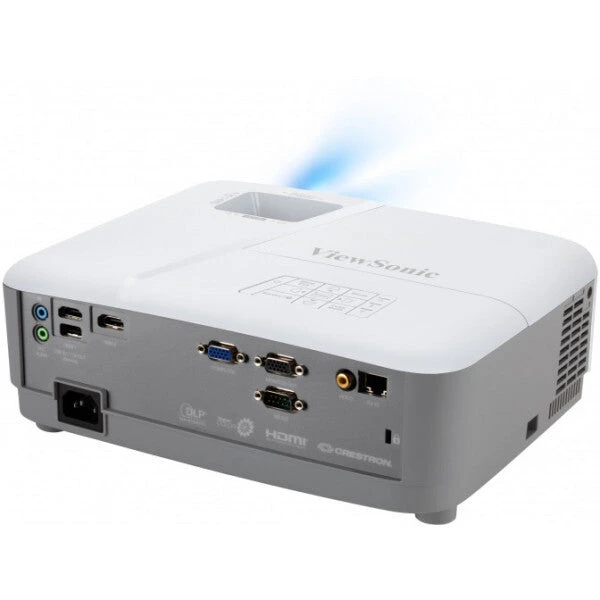

VERSATILE CONNECTIVITY
HDMI, USB, and VGA connections provide the versatility to connect to a wide variety of computing and multimedia devices.

---

Projector
Keystone correction, vertical	-40 – 40°
Matrix size	1.65 cm (0.65″)
Keystone correction, horizontal	-40 – 40°
Horizontal scan range	15 – 102 kHz
Vertical scan range	23 – 120 Hz
Number of colours	1.07 billion colours
Projection distance	0.78 – 10.14 m
Screen size compatibility	762 – 7620 mm (30 – 300″)
Contrast ratio (typical)	22000:1
Projector native resolution	WXGA (1280×800)
Projection technology	DMD
Projector brightness	4000 ANSI lumens

Light source
Lamps quantity	1 lamp(s)
Lamp power	203 W
Service life of light source (economic mode)	20000 h
Service life of light source	6000 h
Light source type	Lamp

Lens system
Offset	120%
Throw ratio	1.21-1.57
Zoom ratio	2.0:1
Zoom capability	Yes
Aperture range (F-F)	2.59 – 2.87
Focal length range	16.88 – 21.88 mm
Focus	Manual

Video
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL, SECAM

Ports & interfaces
AC (power) in	Yes
PC Audio out	Yes
PC Audio in	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Composite video in	1
DVI port	No
HDMI version	1.4
HDMI connector type	Full-size
HDMI ports quantity	2
VGA (D-Sub) ports quantity	2

Network
Wi-Fi	No
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Smart TV	No

Storage
Card reader integrated	No

Features
Number of OSD languages	23
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
On Screen Display (OSD)	Yes
HDCP	Yes
Noise level (economic mode)	28 dB
Noise level	32 dB
Interactive	No

Multimedia
RMS rated power	10 W
Built-in speaker(s)	Yes

Design
Placement	Desktop, Ceiling
Product colour	White
Market positioning	Presentation
Product type	Standard throw projector

Display
Built-in display	No

Power
AC input frequency	50 – 60 Hz
AC input voltage	100-240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	280 W
Power source	AC

Supplier features
Harmonized System (HS) code	85286200

Operational conditions
Operating temperature (T-T)	0 – 40 °C

Weight & dimensions
Package weight	3.54 kg
Package height	297 mm
Package depth	168 mm
Package width	415 mm
Height	110 mm
Depth	218 mm
Width	294 mm
Weight	2.33 kg

Packaging content
Cables included	AC, VGA
Manual	Yes

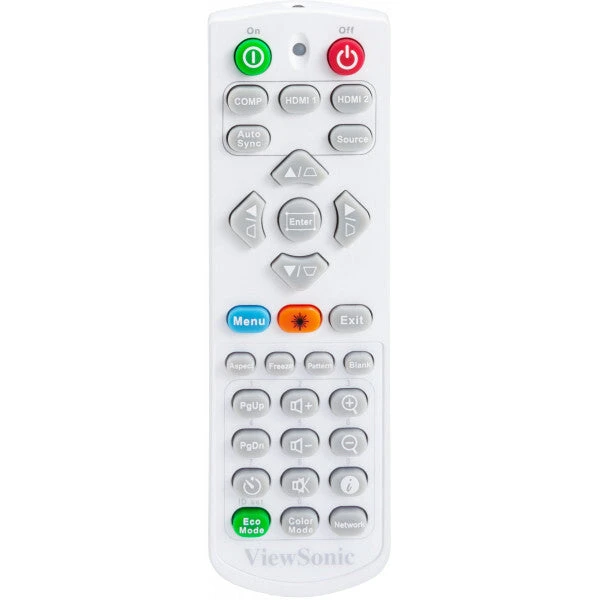

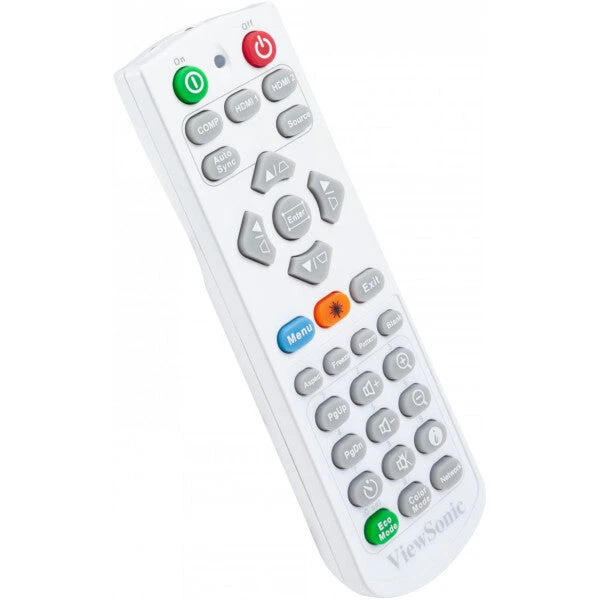

Remote control included	Yes
