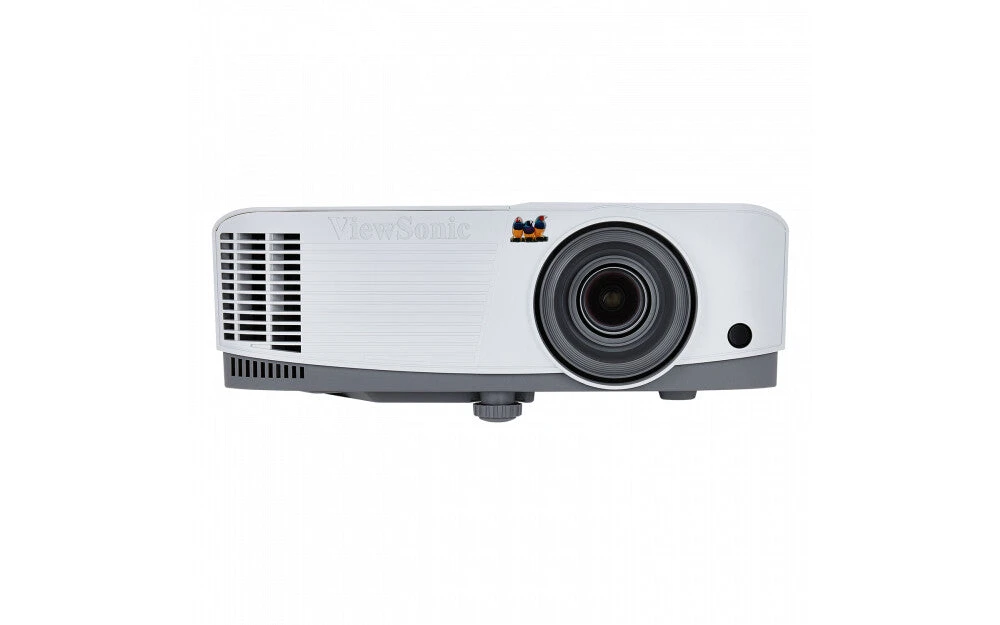

Viewsonic PA503S Data Projector Standard Throw Projector 3600 ANSI Lumens DLP SVGA (800×600) Grey, White

800 x 600, DLP, 3600 ANSI lum, 30-300″, 190 W, 4:3, Mini USB B, RS-232, RCA, 3.5mm, HDMI 1.4, VGA, 2x RGB, 2 W RMS, 294x218x110 mm

---

The ViewSonic PA503S price-performance projector features 3,600 lumens, native SVGA 800 x 600 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503S also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503S is ideal for use in education and small business environments.

3D Blu-ray Ready
HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.

Quick Power Off
With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.

Industry-leading Warranty
ViewSonic offers one of the industry’s best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.

---

Projector
Keystone correction, vertical	-40 – 40°
Matrix size	1.4 cm (0.55″)
Matrix type	DMD
Horizontal scan range	15 – 102 kHz
Vertical scan range	23 – 120 Hz
Number of colours	1.073 billion colours
Projection distance	1.1 – 13 m
Screen size compatibility	762 – 7620 mm (30 – 300″)
Native aspect ratio	4:3
Projector native resolution	SVGA (800×600)
Projection technology	DLP
Projector brightness	3600 ANSI lumens

Light source
Lamps quantity	1 lamp(s)
Lamp power	190 W
Service life of light source (economic mode)	15000 h
Service life of light source	4500 h
Light source type	Lamp

Lens system
Throw ratio	1.96 – 2.15:1
Optical zoom	1.1x
Zoom type	Manual
Zoom capability	Yes
Focus	Manual

Video
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D Ready	Yes
Analog signal format system	NTSC, PAL, PAL 60, SECAM

Ports & interfaces
AC (power) in	Yes
PC Audio out	Yes
PC Audio in	Yes
Serial interface type	RS-232
Composite video in	1
DVI port	No
HDMI version	1.4
HDMI connector type	Full-size
HDMI ports quantity	1
VGA (D-Sub) ports quantity	3

Network
Wi-Fi	No
Ethernet LAN	No

Storage
Card reader integrated	No

Features
Certification	FCC (ICES-003), cTUVus

Multimedia
RMS rated power	2 W
Number of built-in speakers	1
Built-in speaker(s)	Yes

Design
Cable lock slot	Yes
Cable lock slot type	Kensington
Placement	Desktop
Product colour	Grey, White
Product type	Standard throw projector

Display
Built-in display	No

Power
AC input frequency	50 – 60 Hz
AC input voltage	100 – 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	260 W
Power source	AC

Supplier features
Harmonized System (HS) code	85286200

Operational conditions
Operating altitude	0 – 1499 m
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	0 – 40 °C

Weight & dimensions
Package weight	3.24 kg
Package height	300 mm
Package depth	188 mm
Package width	365 mm
Height	110 mm
Depth	218 mm
Width	294 mm
Weight	2.2 kg

Packaging content
Cables included	AC, VGA
Quick start guide	Yes
Remote control included	Yes

Other features
RS-232 ports	1
