Viewsonic M1 Data Projector Short Throw Projector 250 ANSI Lumens LED WVGA (854×480) 3D Silver

250 lum, DLP, 854×480, 16:9, USB 2.0 A, USB 3.1 C, Micro SD, HDMI 1.4, 3.5mm, RMS 2x 3 W, 148×40.5×126 mm

---

Viewsonic M1. Projector brightness: 250 ANSI lumens, Projection technology: LED, Projector native resolution: WVGA (854×480). Light source type: LED, Service life of light source: 30000 h. Focus: Manual, Fixed focal length: 5.5 mm, Aperture range (F-F): 1.7 – 1.7. Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. HDMI connector type: Full-size

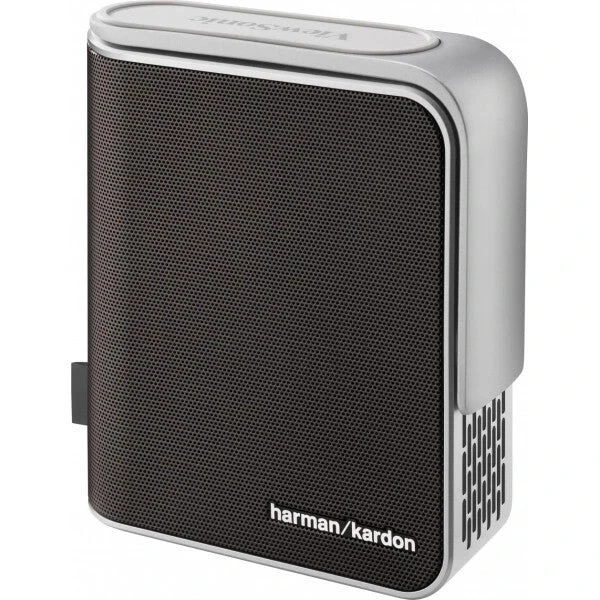

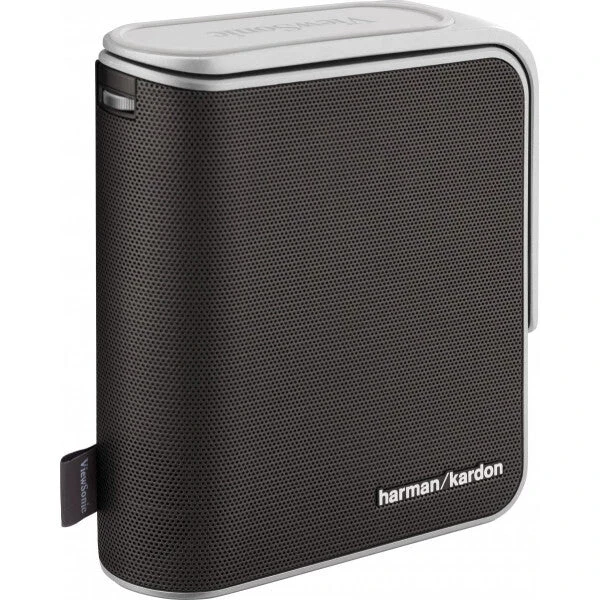

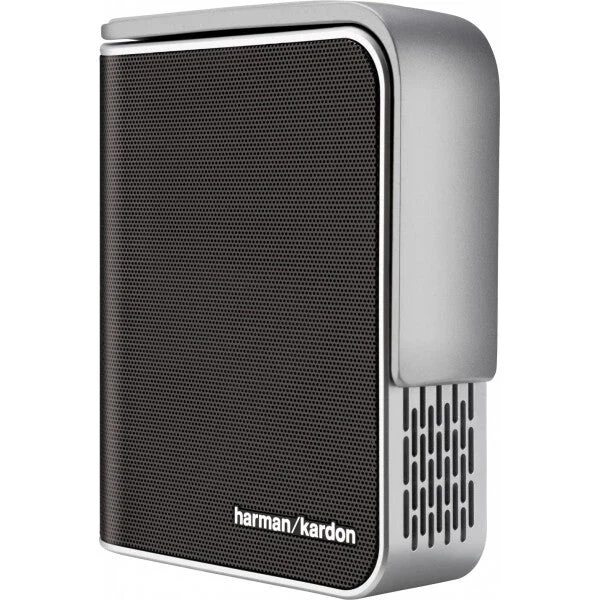

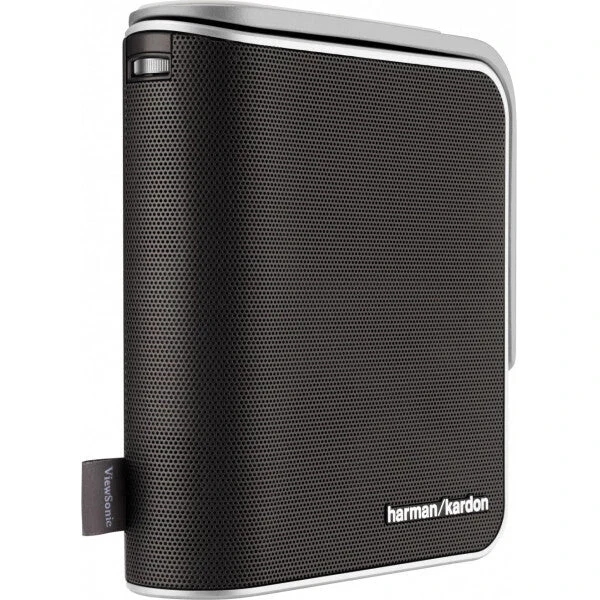

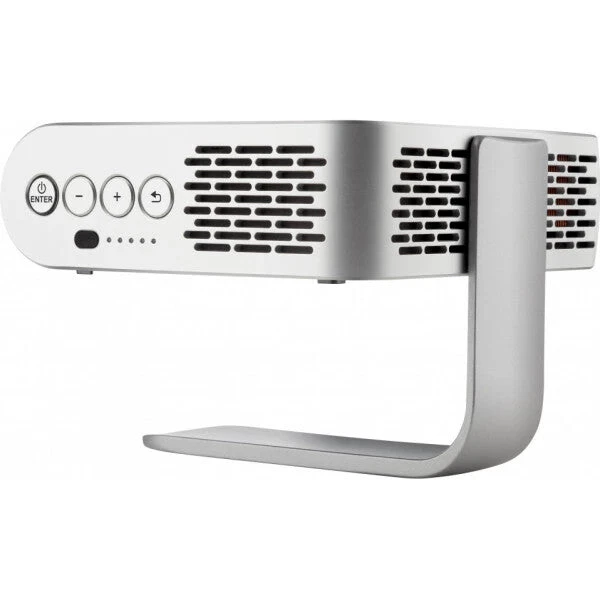

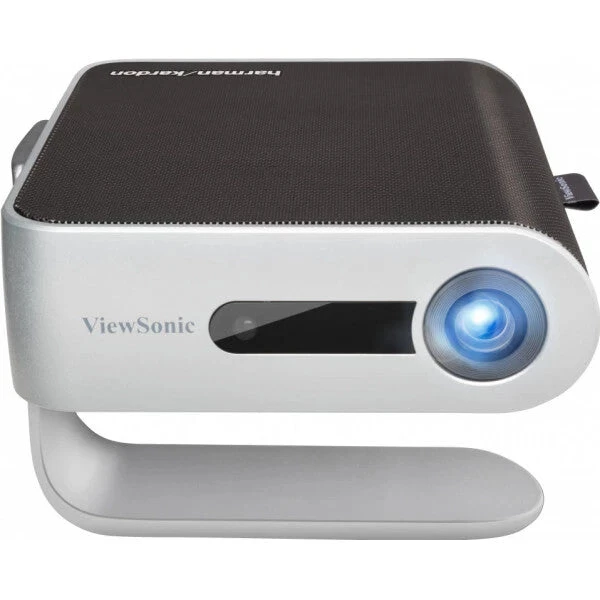

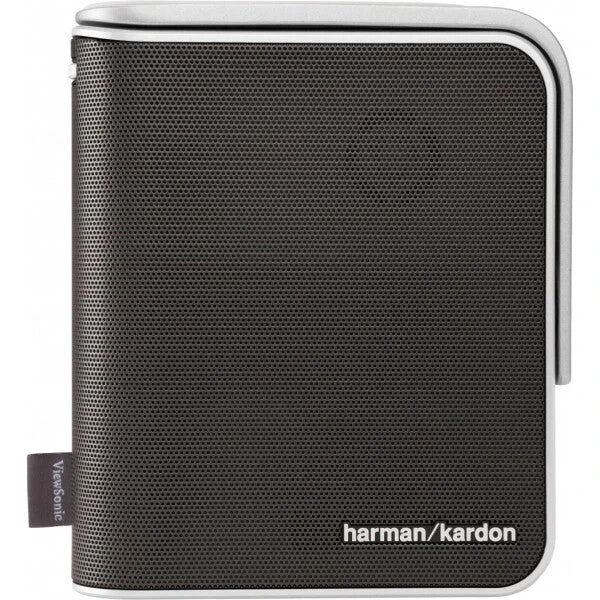

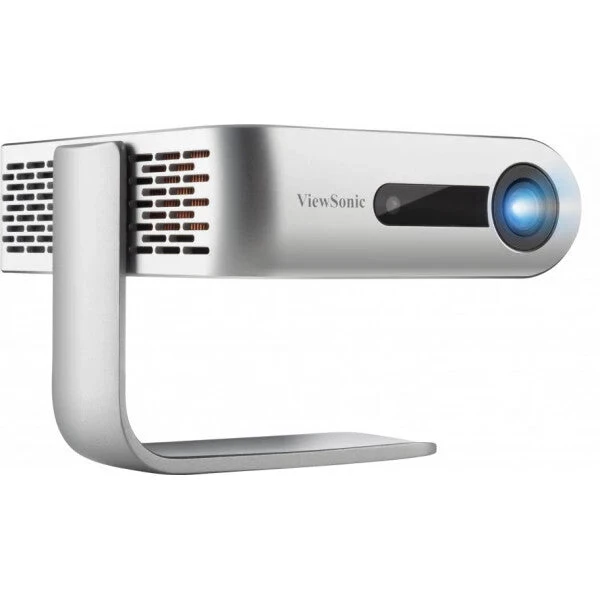

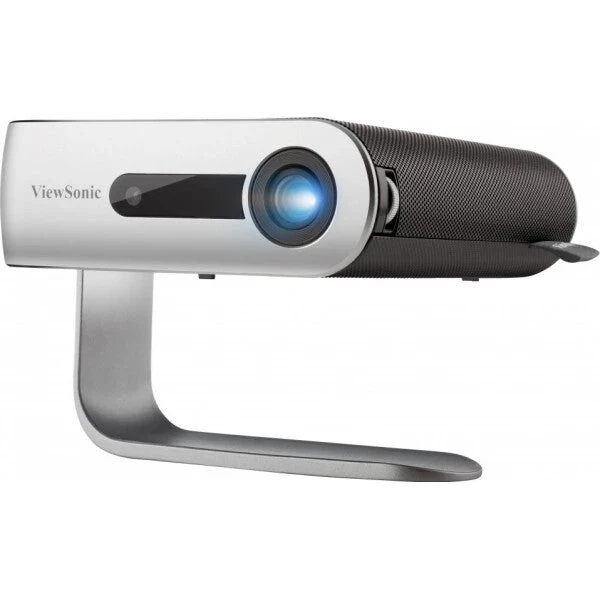

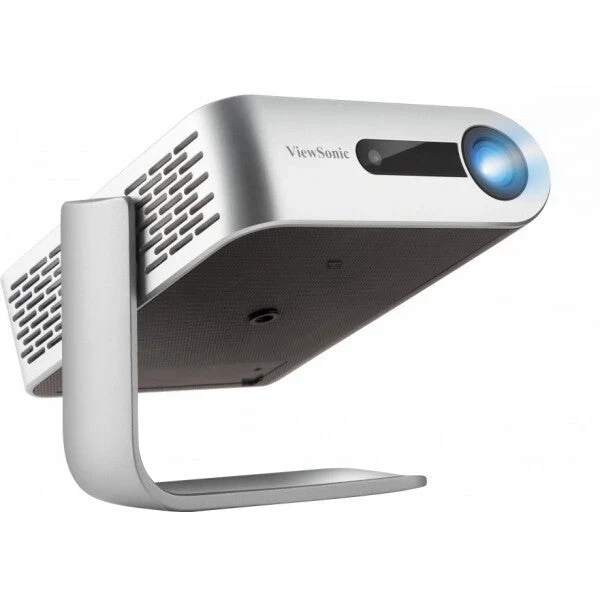

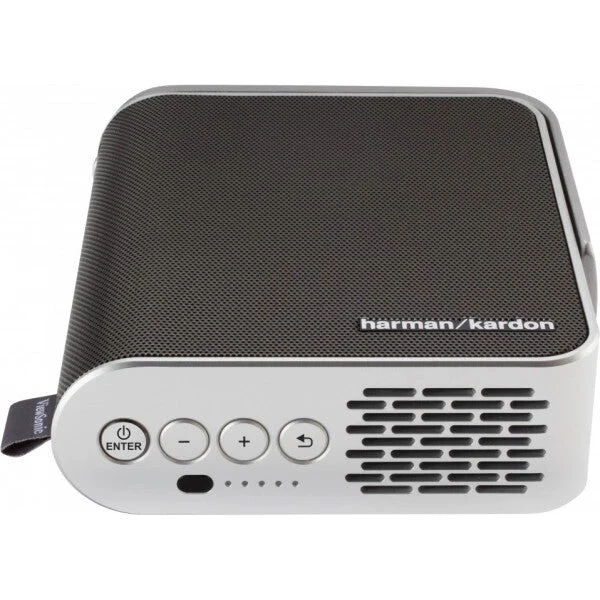

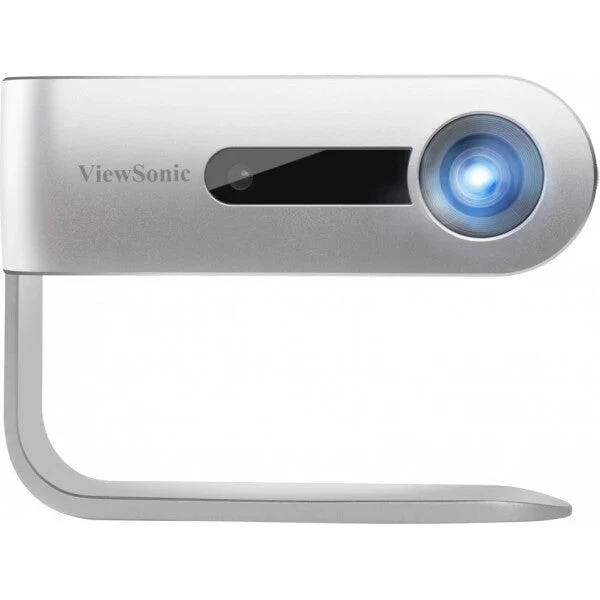

The ViewSonic® M1 is an ultra-portable LED projector that delivers convenient entertainment in nearly any room. With a built-in battery and over 30,000 hours of operational life, this projector will deliver years of multimedia entertainment wherever it goes. Weighing less than two pounds, the M1’s compact and lightweight design makes it ideal for moving from room to room, or for indoor/outdoor usage. An integrated smart stand provides for simple 360-degree setup, while also doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on with full brightness for instant entertainment. A built-in safety feature temporarily turns off the lens when objects are detected too close to the projector. Dual Harman Kardon speakers provide crisp and clear sound for multimedia content, while a short throw lens can display large images in small spaces. What’s more, versatile connectivity options include a MicroSD card slot, USB Type-A, and USB Type-C – making the M1 a great option for sharing and displaying videos and other multimedia content.

Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service

---

Projector
Keystone correction, vertical	-40 – 40°
Matrix size	5.08 mm (0.2″)
Horizontal scan range	15 – 102 kHz
Vertical scan range	23 – 120 Hz
Number of colours	1.07 billion colours
Projection distance	0.64 – 2.66 m
Screen size compatibility	609.6 – 2540 mm (24 – 100″)
Contrast ratio (typical)	120000:1
Projector native resolution	WVGA (854×480)
Projection technology	LED
Projector brightness	250 ANSI lumens

Light source
Service life of light source	30000 h
Light source type	LED

Lens system
Throw ratio	1.2
Zoom type	Fixed
Aperture range (F-F)	1.7 – 1.7
Fixed focal length	5.5 mm
Focus	Manual

Video
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D	Yes
Full HD	No

Ports & interfaces
DC-in jack	Yes
Headphone outputs	1
USB 2.0 ports quantity	1
DVI port	No
HDMI version	1.4
HDMI connector type	Full-size
HDMI ports quantity	1

Network
Wi-Fi	No
Ethernet LAN	No
Smart TV	No

Storage
Internal storage capacity	16 GB
Maximum memory card size	32 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Card reader integrated	Yes

Features
Number of OSD languages	23
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
On Screen Display (OSD)	Yes
Noise level (economic mode)	25 dB
Noise level	26 dB
Interactive	No

Multimedia
RMS rated power	6 W
Number of built-in speakers	2
Built-in speaker(s)	Yes

Design
Placement	Tripod
Product colour	Silver
Market positioning	Portable
Product type	Short throw projector

Display
Built-in display	No

Power
Battery life (max)	3 h
Battery capacity	12000 mAh
AC adapter output voltage	19 V
AC input voltage	100 – 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Power source	AC/Battery

Supplier features
Harmonized System (HS) code	85286200

Operational conditions
Operating temperature (T-T)	0 – 40 °C

Weight & dimensions
Package weight	1.7 kg
Package height	119 mm
Package depth	190 mm
Package width	219 mm
Height	40 mm
Depth	126 mm
Width	146 mm
Weight	750 g

Packaging content
Cables included	AC, USB Type-C
Manual	Yes
Carrying case	Yes
Remote control included	Yes
