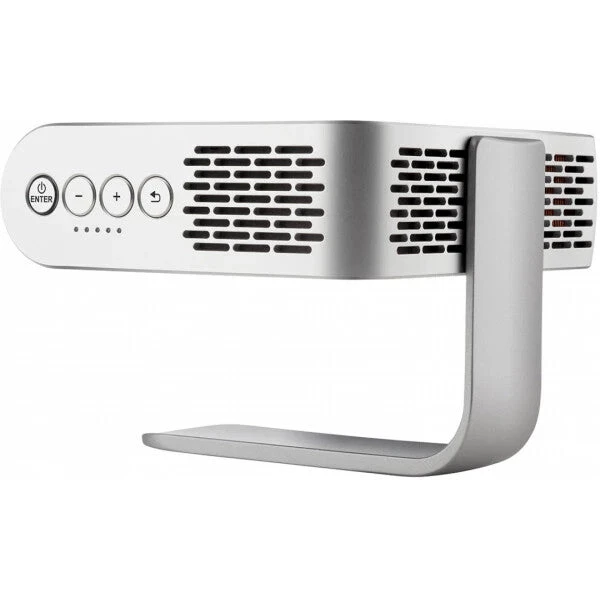

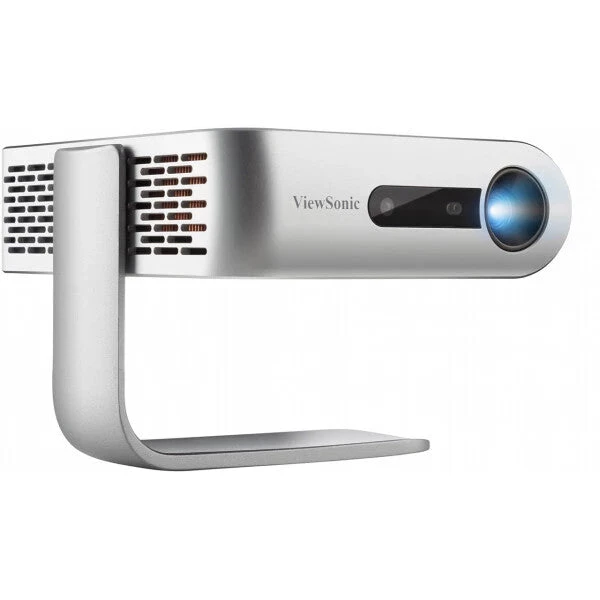

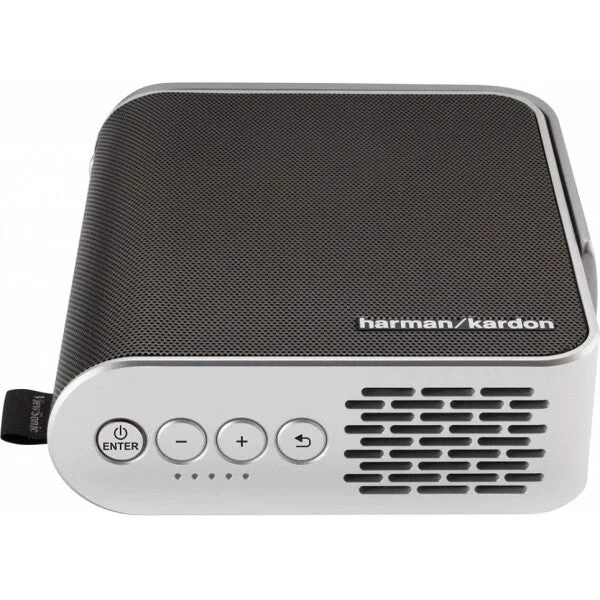

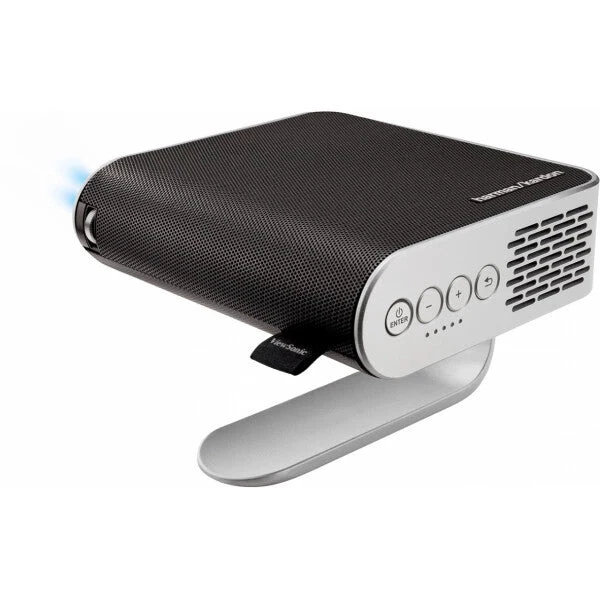

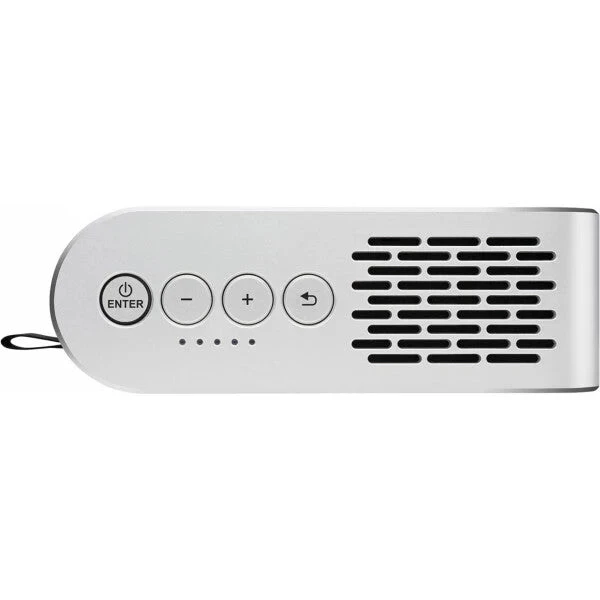

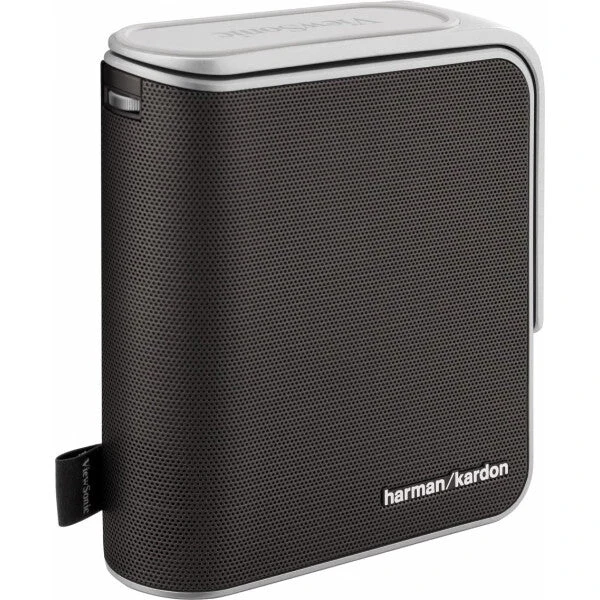

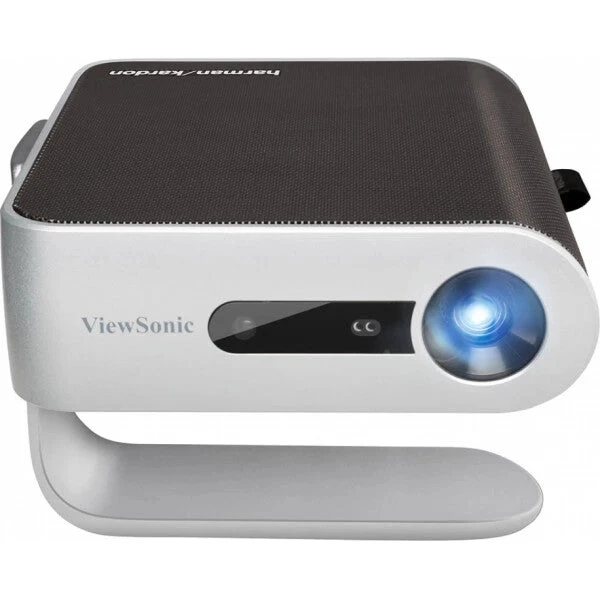

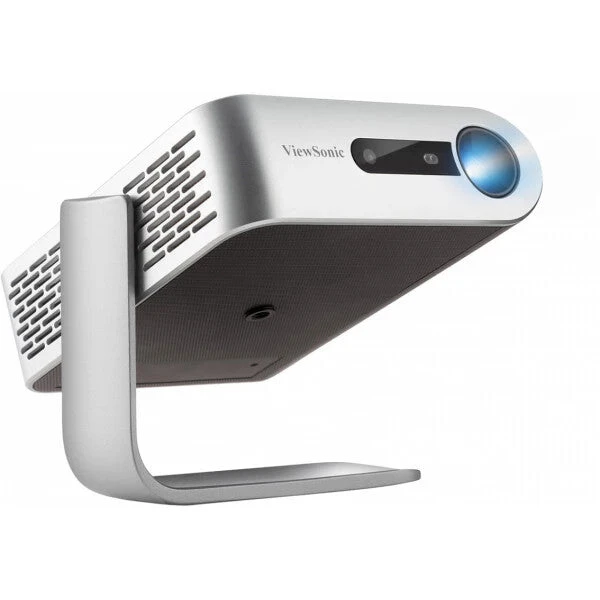

Viewsonic M1+ Data Projector Short Throw Projector 125 ANSI Lumens LED WVGA (854×480) 3D Silver

Viewsonic M1+. Projector brightness: 125 ANSI lumens, Projection technology: LED, Projector native resolution: WVGA (854×480). Light source type: LED, Service life of light source: 30000 h. Focus: Manual, Fixed focal length: 5.5 mm, Aperture range (F-F): 1.7 – 1.7. Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. HDMI connector type: Full-size

---

Projector
Keystone correction, vertical	-40 – 40°
Matrix size	5.08 mm (0.2″)
Horizontal scan range	15 – 102 kHz
Vertical scan range	23 – 120 Hz
Number of colours	1.07 billion colours
Projection distance	0.64 – 2.66 m
Screen size compatibility	609.6 – 2540 mm (24 – 100″)
Contrast ratio (typical)	120000:1
Projector native resolution	WVGA (854×480)
Projection technology	LED
Projector brightness	125 ANSI lumens

Light source
Service life of light source	30000 h
Light source type	LED

Lens system
Throw ratio	1.2
Zoom type	Fixed
Aperture range (F-F)	1.7 – 1.7
Fixed focal length	5.5 mm
Focus	Manual

Video
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3D	Y
Full HD	N

Ports & interfaces
DC-in jack	Y
Headphone outputs	1
USB 2.0 ports quantity	1
DVI port	N
HDMI version	1.4
HDMI connector type	Full-size
HDMI ports quantity	1

Network
Bluetooth	Y
Wi-Fi	Y
Ethernet LAN	N
Smart TV	N

Storage
Internal storage capacity	16 GB
Maximum memory card size	32 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Card reader integrated	Y

Features
Number of OSD languages	23
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
On Screen Display (OSD)	Y
Noise level (economic mode)	25 dB
Noise level	26 dB
Interactive	N

Multimedia
RMS rated power	6 W
Number of built-in speakers	2
Built-in speaker(s)	Y

Design
Placement	Tripod
Product colour	Silver
Market positioning	Portable
Product type	Short throw projector

Display
Built-in display	N

Power
Battery life (max)	3 h
Battery capacity	12000 mAh
AC adapter output voltage	19 V
AC input voltage	100 – 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Power source	AC/Battery

Supplier features
Harmonized System (HS) code	85286200

Operational conditions
Operating temperature (T-T)	0 – 40 °C

Weight & dimensions
Package weight	1.7 kg
Package height	119 mm
Package depth	190 mm
Package width	219 mm
Height	40 mm
Depth	126 mm
Width	146 mm
Weight	750 g

Packaging content
Cables included	AC, USB Type-C
Manual	Y

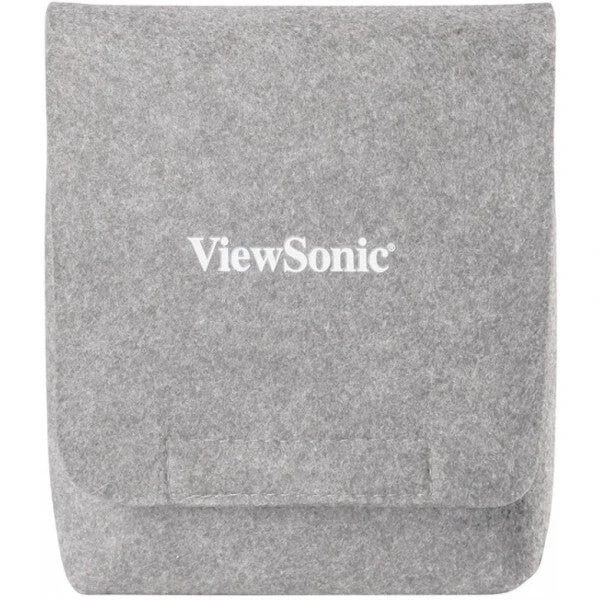

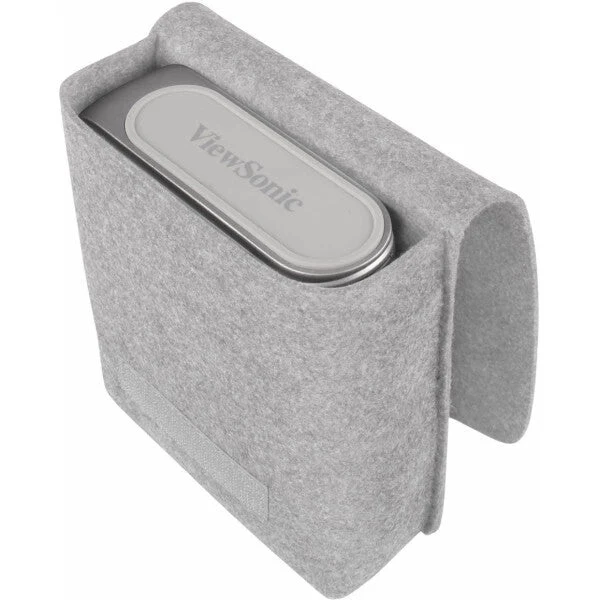

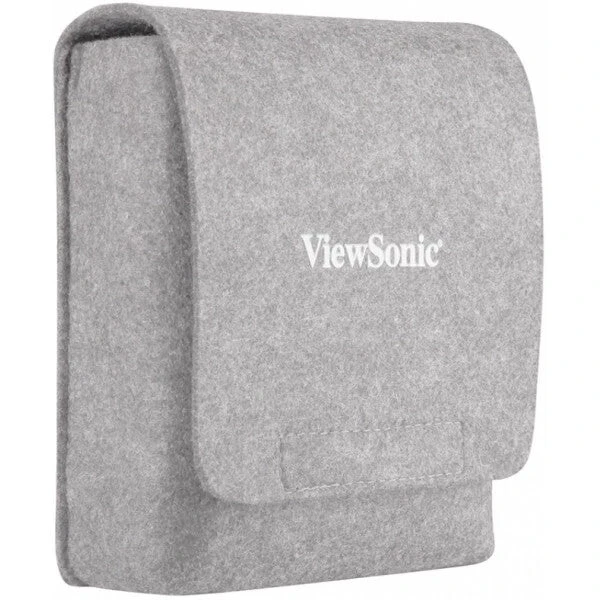

Carrying case	Y

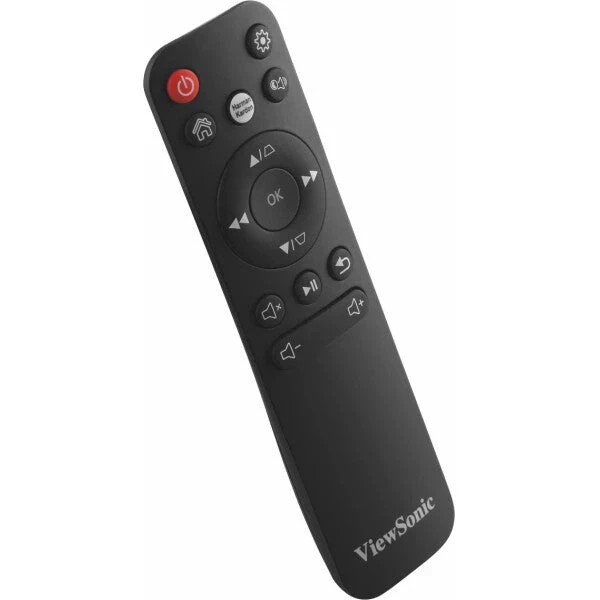

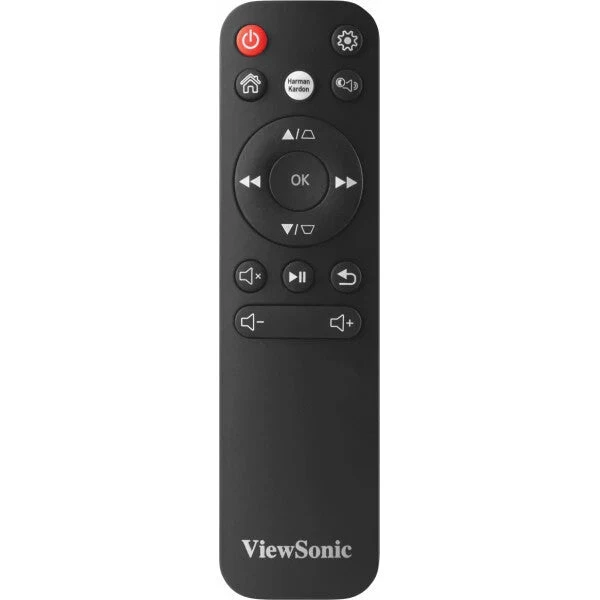

Remote control included	Y
