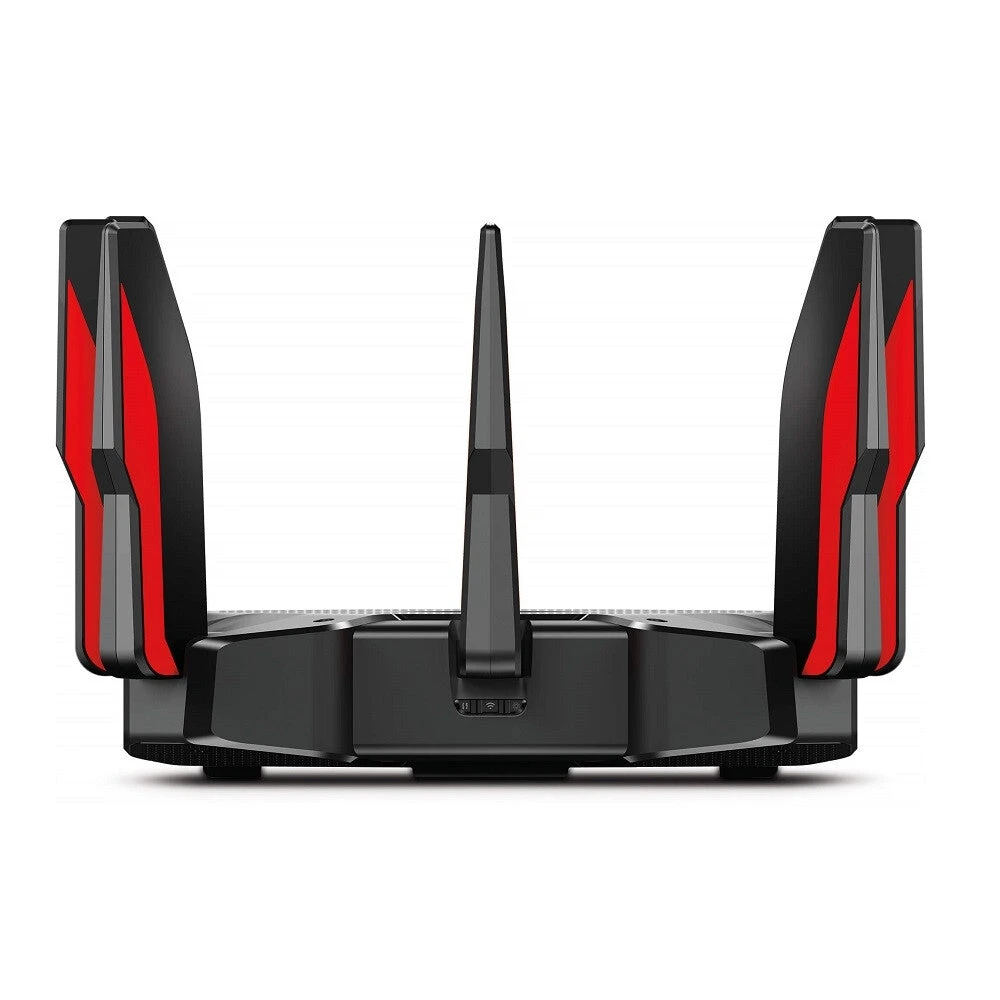

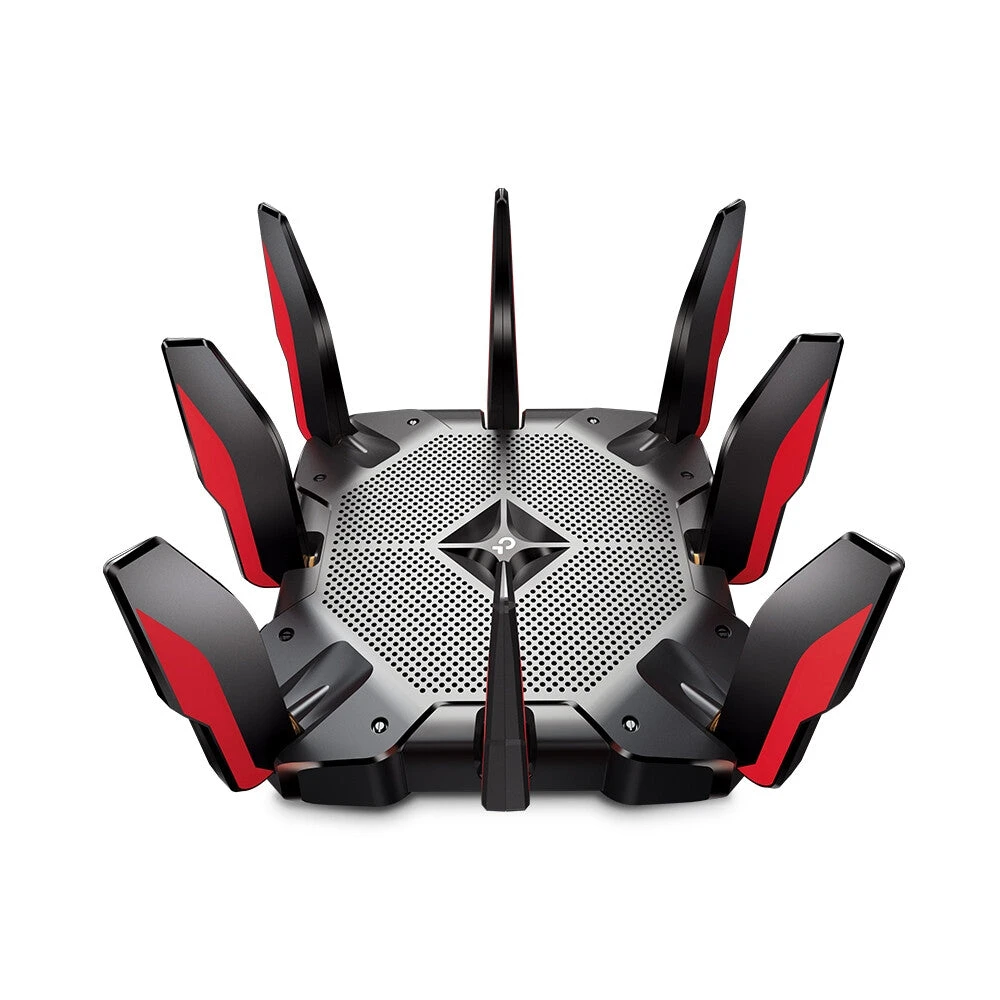

TP-Link Archer AX11000 Wireless Router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black

IEEE 802.11ax/ac/n/a/b/g, 2.4/5 GHz, QoS, VPN, NAT, 288x288x184 mm

---

ENTER THE 10 Gbps WI-FI ERA
Faster speed the router is, less congestion for gaming rigs. Armed with Wi-Fi 6, Archer AX11000 becomes the next-level speed machine that offers astonishing Wi-Fi speeds up to 10756 Mbps with an extended range.

LIGHTNING ATTACK TO DEFEAT LATENCY
More connected devices shall bring more fun rather than dragging the performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

CRUSH THE LAG WIN THE GAME
GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

KNOW YOUR NETWORK
GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

KEEP ALL ELEMENTS SECURITY
GAME PROTECTOR keeps your accounts and system safe. This enhanced HomeCare™ security system is powered by Trend Micro™, delivering comprehensive antivirus protection that ensures your total security while gaming online.

GAME ON THE FAST LANE
GAMING BAND—a dedicated gaming band for your game rigs, makes your online games and your families’ Netflix 4K streaming no more competitor.
DFS expands available channel automatically, get on the more vacant lane and boost the game.

BATTLE-TESTED HARDWARE
Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

---

WAN connection
WAN connection type	RJ-45
SIM card slot	No
DSL WAN	No
Ethernet WAN	Yes

Wireless LAN features
WLAN data transfer rate (third band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
WLAN data transfer rate (first band)	4804 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	4804 Mbit/s
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)

Network
Receiver sensitivity	5 GHz_1:11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm5 GHz_2:11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm2.4 GHz：11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
VPN support	PPTP, OpenVPN
Media server	Yes
Built-in FTP server	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Dynamic DNS (DDNS)	Yes
Port forwarding	Yes
Port triggering	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes

Ports & interfaces
DC-in jack	Yes
Memory card slot(s)	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB port	Yes
Ethernet LAN (RJ-45) ports	8

Management features
MU-MIMO technology	Yes
WPS push button	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Web-based management	Yes

Security
DMZ support	Yes
URL filtering	Yes
Filtering	Yes
Firewall security	SPI
Guest access	Yes
Firewall	Yes
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3

Protocols
Supported network protocols	IPv4, IPv6
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes

Design
On/off switch	Yes
Product colour	Black
Product type	Tabletop router

General
Product family	Archer

Antenna
Transmit power	CE:
Antennas quantity	8
Antenna design	External

Features
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Flash memory	512 MB
Internal memory	1024 MB
Processor cores	4
Processor frequency	1800 MHz
Built-in processor	Yes

Power
Output current	5 A
Output voltage	12 V
Power source type	AC

Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-40 – 70 °C
Operating relative humidity (H-H)	10 – 90%
Storage relative humidity (H-H)	5 – 90%

System requirements
Mac compatibility	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Weight & dimensions
Width	288 mm
Depth	288 mm
Height	184 mm

Packaging data
Number of products included	1 pc(s)
Package weight	2.59 kg
Package height	120 mm
Package depth	290 mm
Package width	365 mm
Quick installation guide	Yes
AC adapter included	Yes
Cables included	LAN (RJ-45)

Technical details
Sustainability certificates	RoHS, Federal Communications Commission (FCC), CE
Sustainability compliance	Yes
