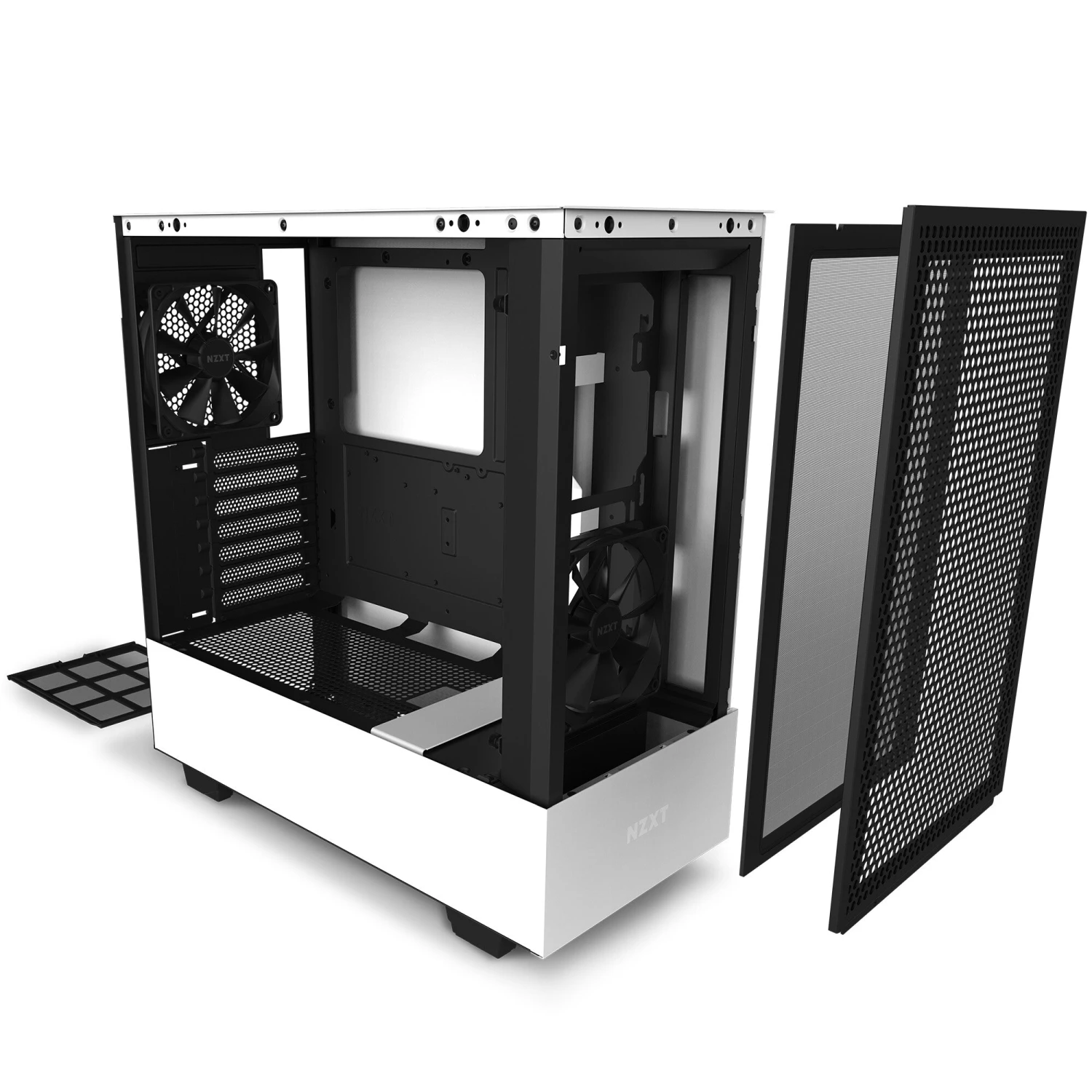

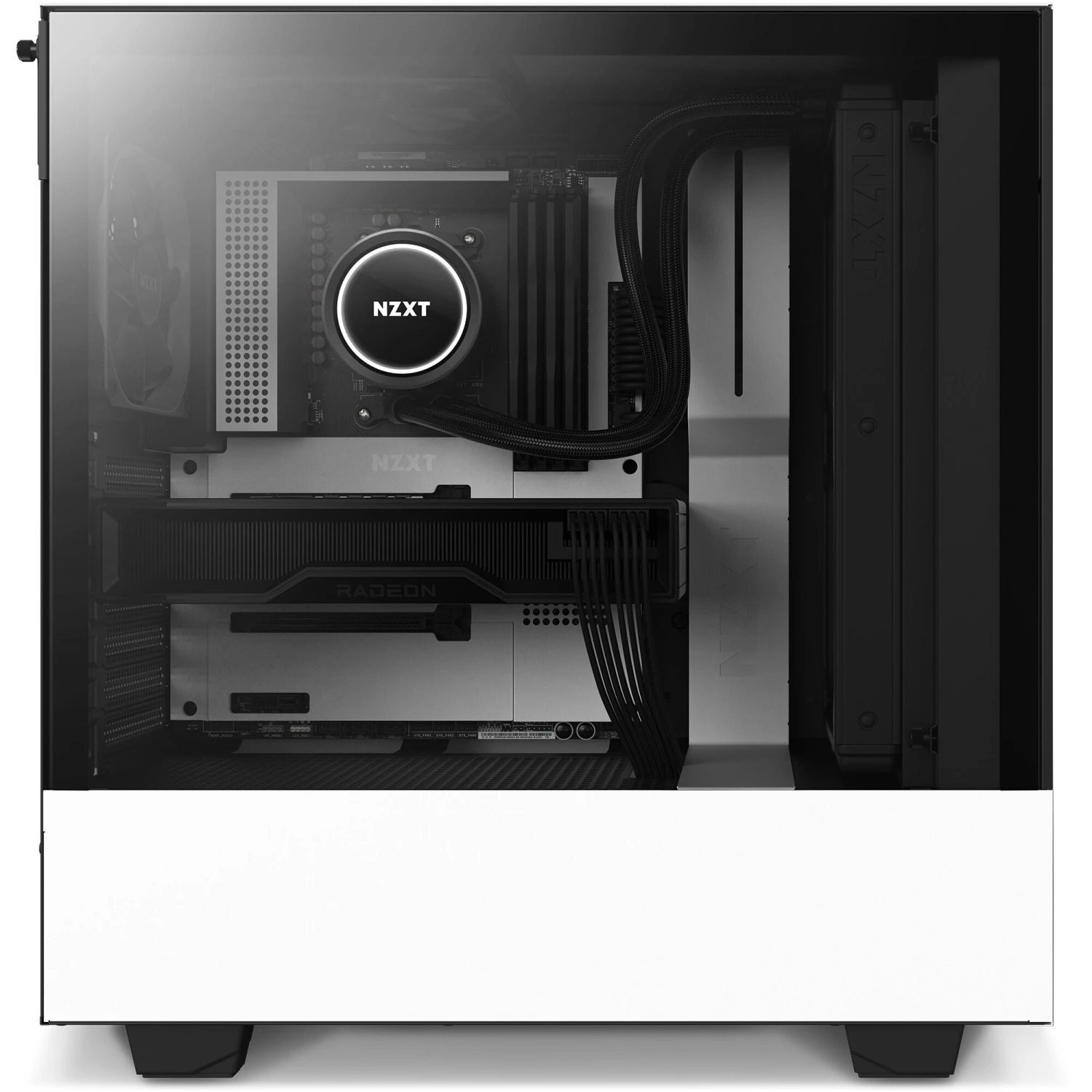

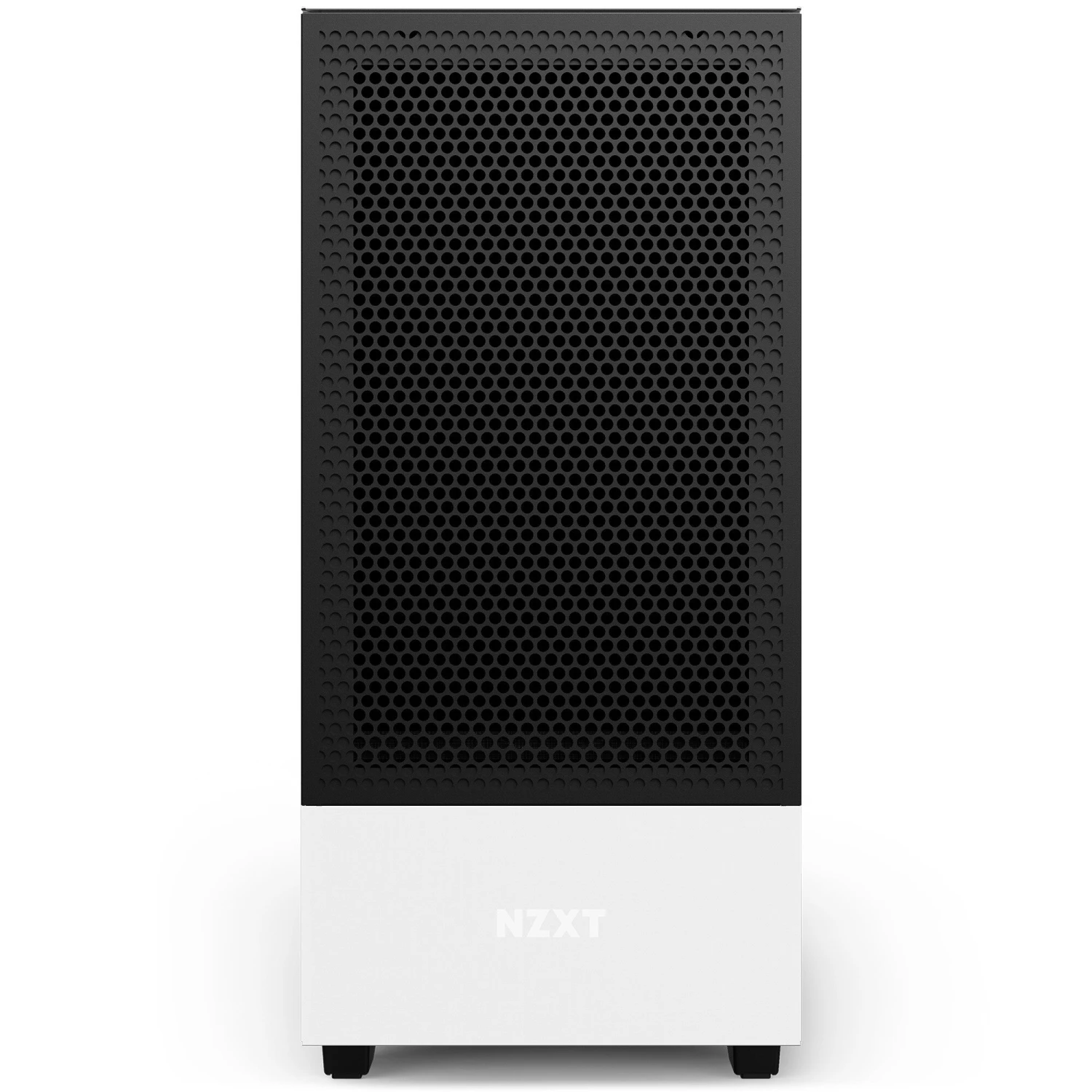

NZXT H510 Flow Midi Tower Black, White

Mid-Tower, 3x 2.5″, 3x 3.5″, USB, 460x210x428 mm

---

NZXT H510 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black, White. Front fans installed: 1x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5″. Width: 210 mm, Depth: 428 mm, Height: 460 mm

This compact mid-tower is an ideal case for the majority of builds. The H510 is easy-to-build-in and offers flexibility for a variety of ATX parts.

---

Design
Maximum graphics card length	36 cm
Maximum CPU cooler height	16.5 cm
Reset button	Y
On/off button	Y
Cable management	Y
Tempered glass panel(s)	Y
Side window	Y
Number of expansion slots	7
Number of 3.5″ bays	3
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Product colour	Black, White
Material	Steel, Tempered glass
Type	PC
Form factor	Midi Tower

Power supply
Power supply included	N

Ports & interfaces
Audio output	Y
Audio input	Y
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Cooling
Rear radiator fan sizes supported	120 mm
Side radiator fan sizes supported	280 mm
Fan speed	1200 – 1200 RPM
Top fans diameters supported	120,140 mm
Number of top fans supported (max)	1
Rear fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans installed	1x 120 mm
Front fans diameters supported	120,140 mm
Number of front fans supported (max)	2
Front fans installed	1x 120 mm

Storage
Supported HDD sizes	2.5,3.5″

Weight & dimensions
Weight	6.6 kg
Height	460 mm
Depth	428 mm
Width	210 mm

Other features
Harmonized System (HS) code	84733080
