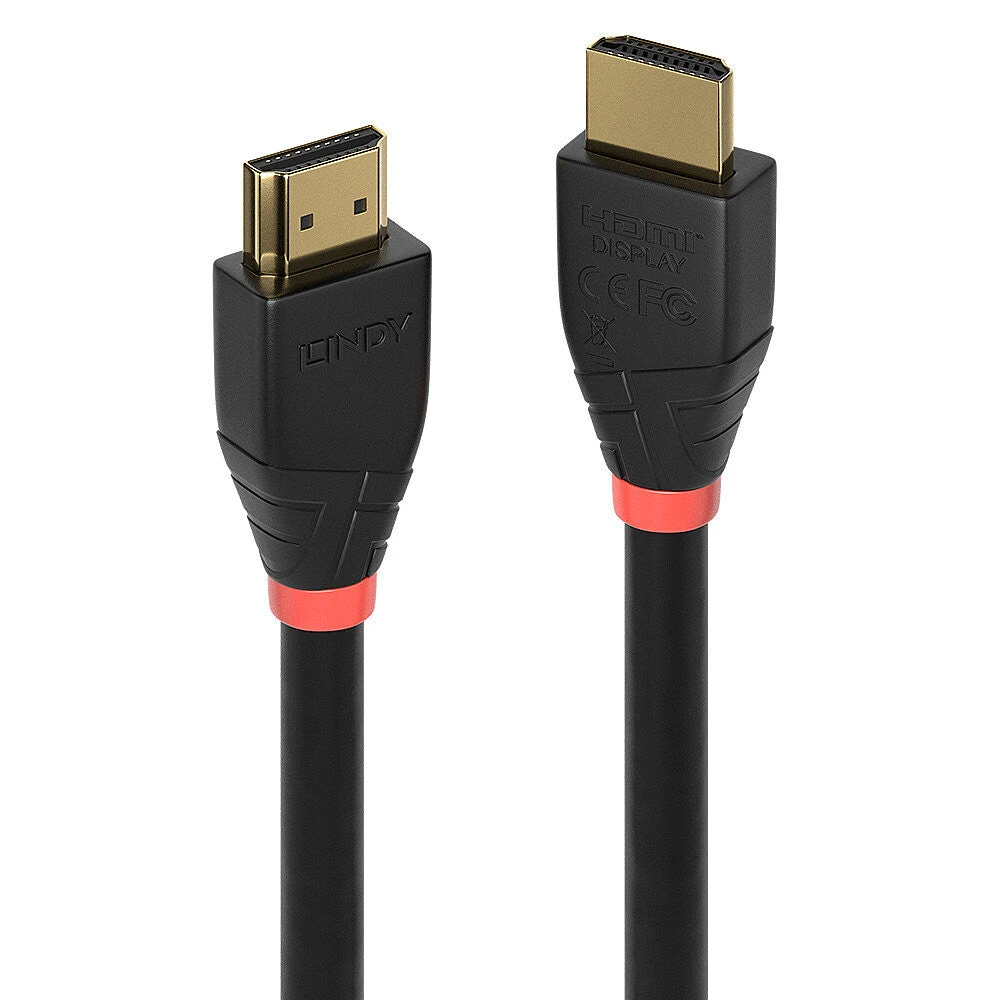

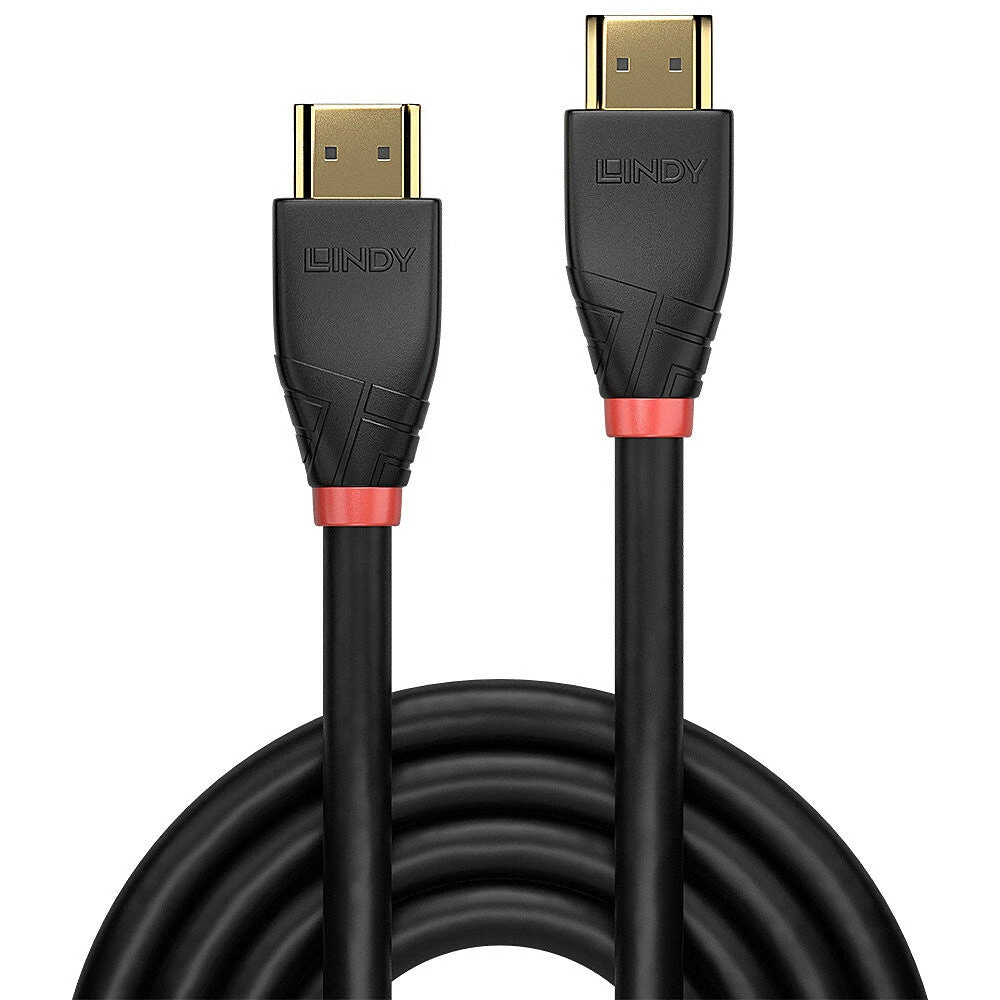

Lindy 15m Active HDMI 18G Cable

15m Active HDMI 18G Cable

---

Lindy’s Active HDMI 2.0 18G cables combine sleek, modern design with superior performance to provide high quality, reliable HDMI transmission over long distances. Lindy’s range of active cables come with an in-built chipset that amplifys the users signal to create a much longer HDMI transmission that isnt possible with standard passive HDMI cables, while also avoiding the need for additional expensive extenders or repeaters. With the active chipset built discreetly into the stylishly designed headshell, these cables can easily be installed through conduit or tighter spaces. These premium cables also support the full 18G HDMI bandwidth to display 4096×2160@60Hz resolutions with additional support for the REC.2020 colour space that covers the wider colour gamut required for high-dynamic range content, for enhanced contrast and more lifelike colour.

Complying to the HDMI 2.0 cable specification, these cables are ideal for use with a variety of source devices including set-top boxes, HDMI media players or PCs when connected to modern displays or projectors. Perfect for use in eye-catching retail displays, informational digital signage or immersive video playback in sports bars, music venues or high end home cinemas.

With support for a range of multi-channel audio formats, including Dolby® True HD and DTS-HD Master Audio, these cables also ensure an impressive three-dimensional surround sound performance when connected to an amplifier’s speaker system. CEC functionality also allows many of the source device’s settings to be controlled via the display or projectors controls to provide a simple and effective control solution, while avoiding the necessity for several remote controls.

Lindy’s active cables should be connected in accordance with the instructions for the optimum experience. The connector marked andldquo;displayandrdquo; must be connected to the monitor or screen. Failure to connect the cable in the correct manner will result in no signal. Some projectors have recessed HDMI sockets, please ensure they can accommodate the connector used on this cable.

Active HDMI cables cannot be connected together or ‘daisy chained’.

---

Features
Quantity per pack	1 pc(s)
Certification	CE, UKCA, FCC, RoHS, REACH, UL
Nominal attenuation	300KHz~825MHz 5dB, 2.475GHz~4.125GHz 12dB~20dB
Colour sampling	4:4:4
Bending radius (min)	10 cm
Shield material	Aluminium
Magnetically shielded	Yes
Cable jacket material	Polyvinyl chloride (PVC)
Cable type	Round cable
Cable material	Copper
Connector housing material	Acrylonitrile butadiene styrene (ABS)
Connector material	Gold
Connector contacts plating	Gold
Contact material	Phosphor bronze
AWG wire size	28
Data transfer rate	18 Gbit/s
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Supported video modes	2160p
Supported graphics resolutions	4096 x 2160
HDMI version	2.0
Product colour	Black
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2	HDMI Type A (Standard)
Connector 1	HDMI Type A (Standard)
Cable length	15 m

Operational conditions
Storage temperature (T-T)	-10 – 60 °C
Operating temperature (T-T)	-20 – 80 °C

Weight & dimensions
Package type	Polybag
Connector 2 dimensions (WxDxH)	21.68 x 43 x 13.22 mm
Connector 1 dimensions (WxDxH)	21.68 x 43 x 13.22 mm
Cable diameter	8.6 mm

Technical details
Sustainability certificates	RoHS

Logistics data
Master (outer) case GTIN (EAN/UPC)	4002888410724
Harmonized System (HS) code	84733080
