Lindy 0.5m High Speed HDMI Cable, Black Line

0.5m High Speed HDMI Cable, Black Line

---

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

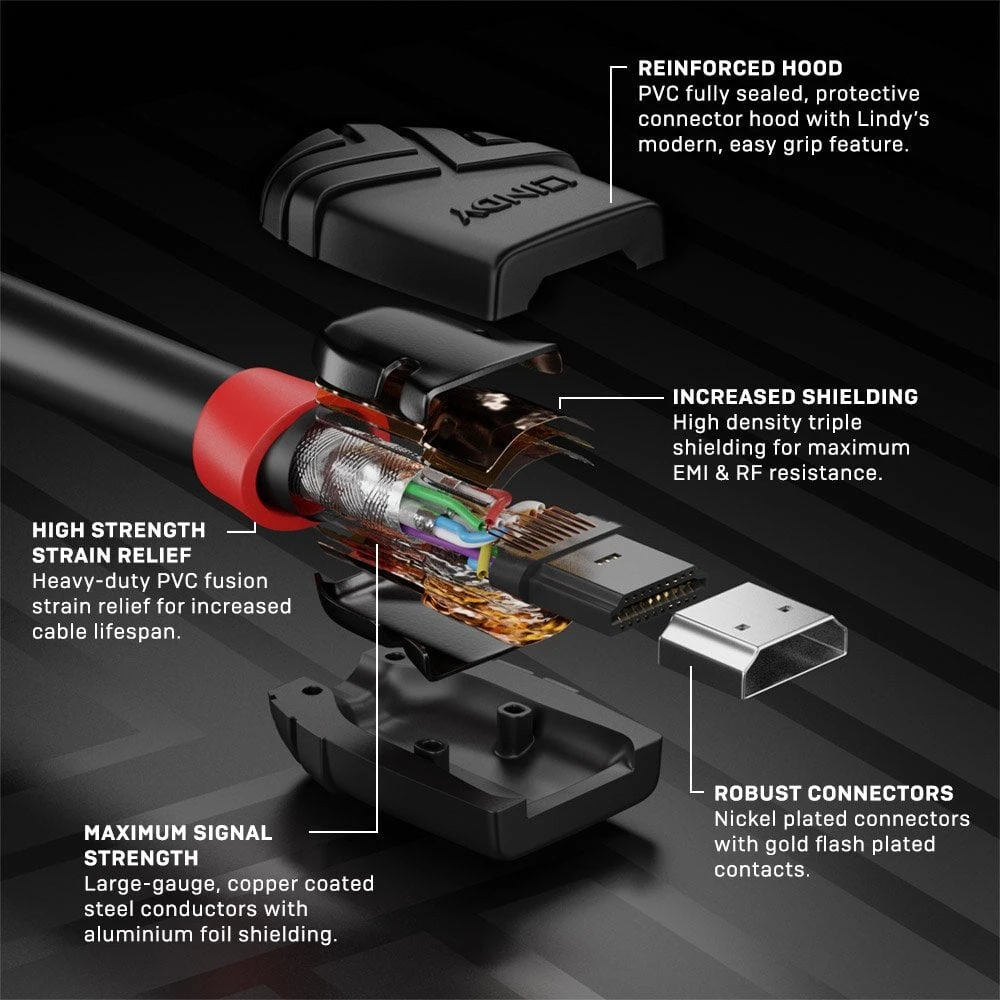

Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.

Black Line HDMI cables are available in lengths from 0.5m to 15m.

---

Features
Quantity per pack	1 pc(s)
Certification	RoHS, REACH, UL
Nominal attenuation	300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Colour sampling	4:4:4
Colour depth	8 bit
Bending radius (min)	6 cm
Shield material	Aluminium
Cable jacket material	Polyvinyl chloride (PVC)
Cable type	Round cable
Cable material	Copper-clad steel (CCS)
Connector housing material	Polyvinyl chloride (PVC)
Connector material	Nickel
Connector contacts plating	Gold
Contact material	Phosphor bronze
AWG wire size	30
Maximum refresh rate	60 Hz
Maximum resolution	4096 x 2160 pixels
Data transfer rate	18 Gbit/s
HDMI Ethernet channel	Yes
Supported graphics resolutions	4096 x 2160
HDMI version	2.0
Product colour	Black
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2	HDMI Type A (Standard)
Connector 1	HDMI Type A (Standard)
Cable length	0.5 m

Operational conditions
Storage temperature (T-T)	-10 – 80 °C
Operating temperature (T-T)	-10 – 80 °C

Weight & dimensions
Package type	Polybag
Connector 2 dimensions (WxDxH)	19.2 x 34.1 x 10.6 mm
Connector 1 dimensions (WxDxH)	19.2 x 34.1 x 10.6 mm
Cable diameter	6 mm

Logistics data
Harmonized System (HS) code	84733080
