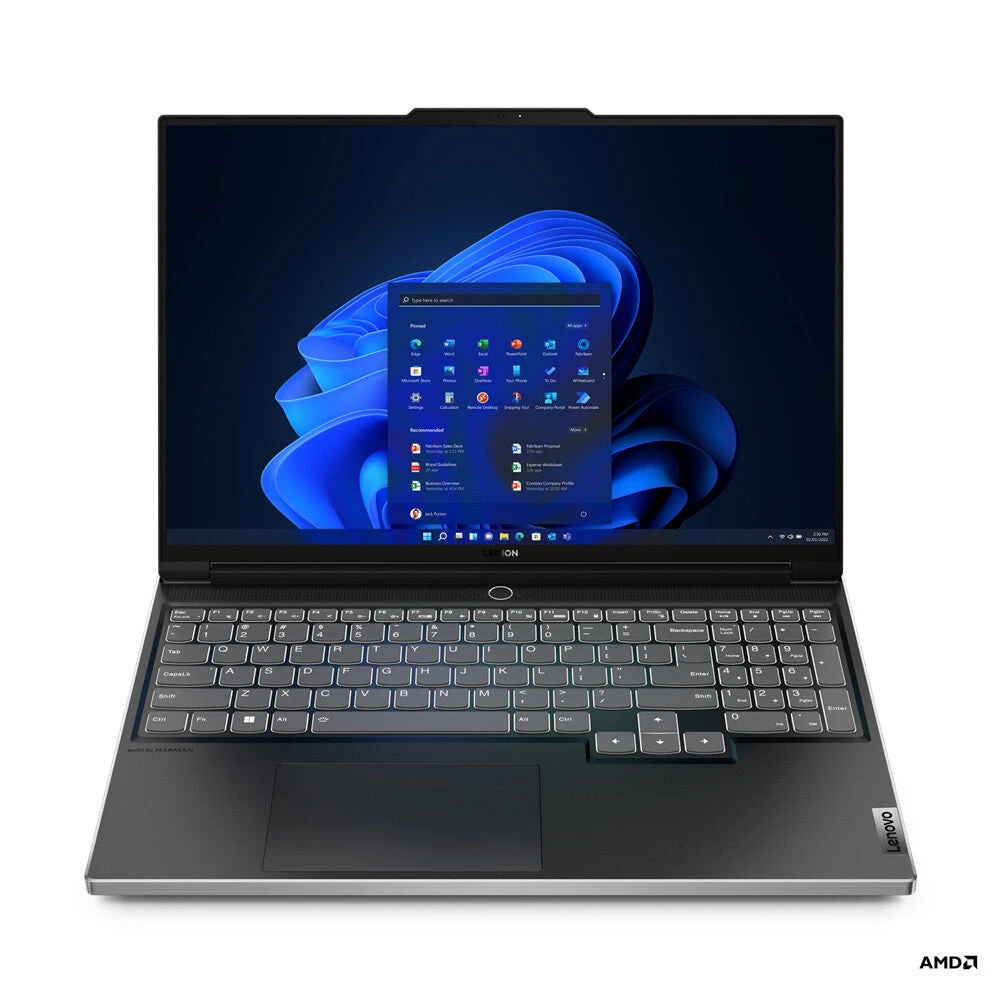

Lenovo Legion S7 16ARHA7 Laptop 40.6 Cm (16″) WQXGA AMD Ryzen™ 7 6800H 16 GB DDR5-SDRAM 1 TB SSD AMD Radeon RX 6800S Wi-Fi 6E (802.11ax) Windows 11 Home Grey

AMD Ryzen 7 6800H (8C/16T, 3.2/4.7GHz, 4MB L2/16MB L3), 8GB DDR5-4800 + 8GB SO-DIMM DDR5-4800, 1TB SSD M.2 2280 PCIe 4.0×4 NVMe, 16″ WQXGA (2560×1600) IPS 500nits Anti-glare 100% sRGB 165Hz DisplayHDR 400 Dolby Vision FreeSync Low Blue Light High Gaming Performance, AMD Radeon RX 6800S 8GB, Wi-Fi 6E 11ax 2×2 + BT5.1, FHD 1080p with E-shutter, Windows 11 Home

---

The freedom to forge your realities
– Play with AMD Advantage™ Edition Ryzen™ 6000 Series Mobile Processors
– Enjoy thin & light gaming with AMD Radeon™ RX 6000S graphics
– Push the envelope on performance with up to 24GB of DDR5 RAM
– See the tactical advantage on a 16″ WXQGA 16:10 display with 165Hz refresh rate and options of 240Hz or mini-LED
– Next-gen Coldfront 4.0 cooling tech optimizes for stealth

---

Design
Market positioning	Gaming
Housing material	Aluminium
Form factor	Clamshell
Colour name	Onyx Grey
Product colour	Grey
Product type	Laptop

Display
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range (HDR) 400
High Dynamic Range (HDR) supported	Yes
Contrast ratio (typical)	1200:1
Maximum refresh rate	165 Hz
Colour gamut	100%
RGB colour space	sRGB
Display brightness	500 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:10
Panel type	IPS
HD type	WQXGA
Touchscreen	No
Display resolution	2560 x 1600 pixels
Display diagonal	40.6 cm (16″)

Processor
Motherboard chipset	AMD SoC
Processor cache type	L3
Processor cache	16 MB
Processor cores	8
Processor boost frequency	4.7 GHz
Processor frequency	3.2 GHz
Processor model	6800H
Processor generation	AMD Ryzen 7 6th Gen
Processor family	AMD Ryzen™ 7
Processor manufacturer	AMD

Memory
Memory channels	Dual-channel
Maximum internal memory	16 GB
Memory slots	1x SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory form factor	On-board + SO-DIMM
Memory clock speed	4800 MHz
Internal memory type	DDR5-SDRAM
Internal memory	16 GB

Storage
Compatible memory cards	MMC, SD, SDHC, SDXC
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
NVMe	Yes
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Total SSDs capacity	1 TB
Storage media	SSD
Total storage capacity	1 TB

Graphics
AMD FreeSync	Yes
Discrete graphics memory type	GDDR6
Discrete graphics card memory	8 GB
On-board graphics card model	AMD Radeon 680M
On-board graphics card family	AMD Radeon
On-board GPU manufacturer	AMD
Discrete graphics card model	AMD Radeon RX 6800S
Discrete GPU manufacturer	AMD
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Speaker power	2 W
Speakers manufacturer	Harman Kardon
Number of built-in speakers	2
Audio chip	Realtek ALC3306

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Front camera	Yes

Network
WWAN	Not installed
Bluetooth version	5.1
Ethernet LAN	No
Antenna type	2×2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Bluetooth	Yes

Ports & interfaces
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Keyboard
Keyboard backlit colour	RGB
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	UK English
Keyboard layout	QWERTY
Pointing device	Touchpad

Software
Bundled software	Office Trial
Trial software	Office
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Home

Battery
Battery life (max)	9.2 h
Battery capacity (Watt-hours)	99.99 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter input voltage	100 – 240 V
AC adapter frequency	50 – 60 Hz
AC adapter power	230 W

Security
Password protection type	BIOS, Power on
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	Yes

Operational conditions
Maximum shipping altitude	3048 m
Storage relative humidity (H-H)	5 – 95%
Operating relative humidity (H-H)	8 – 95%
Storage temperature (T-T)	5 – 43 °C
Operating temperature (T-T)	5 – 35 °C

Sustainability
Sustainability certificates	ErP, RoHS

Weight & dimensions
Height	16.9 mm
Depth	260 mm
Width	357.7 mm
Weight	2.23 kg

General
Product family	Legion
