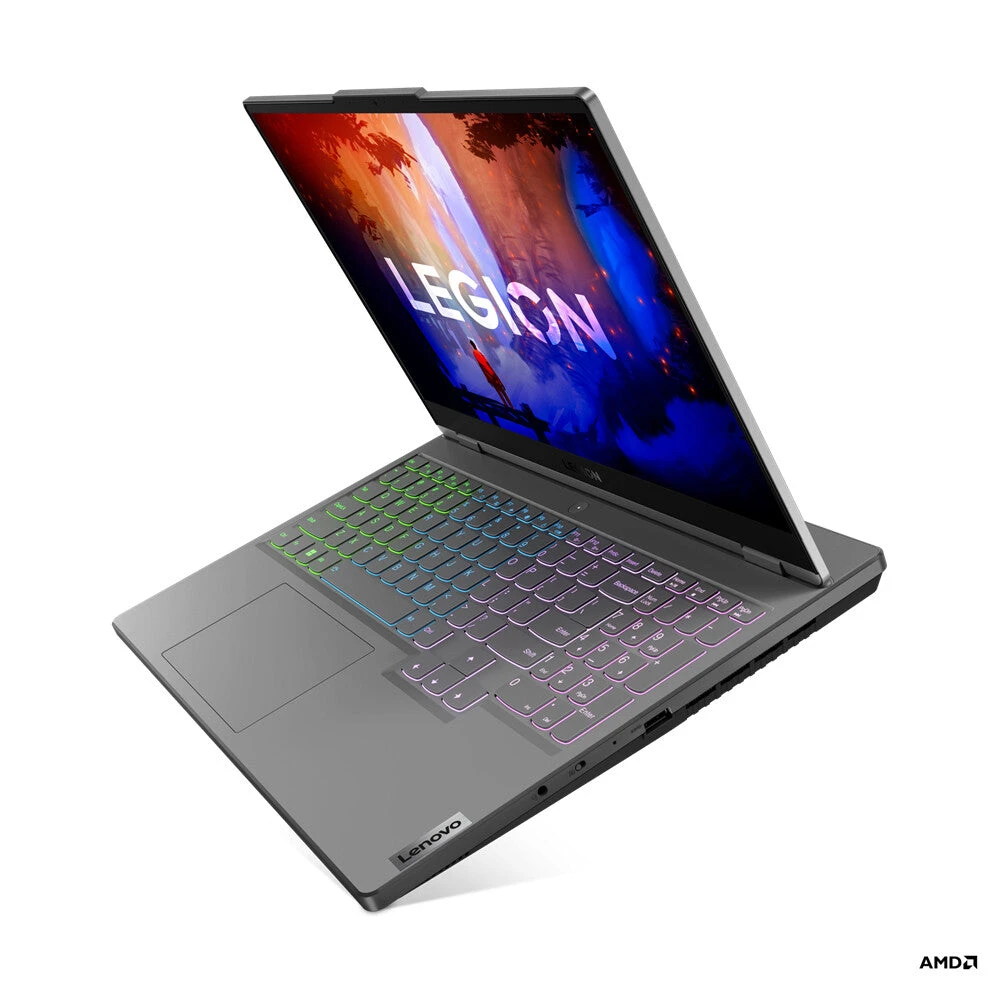

Lenovo Legion 5 15ARH7H Laptop 39.6 Cm (15.6″) Wide Quad HD AMD Ryzen™ 7 6800H 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6 (802.11ax) Windows 11 Home Grey

AMD Ryzen 7 6800H (8C/16T, 3.2/4.7GHz, 4MB L2/16MB L3), 2x 16GB SO-DIMM DDR5-4800, 1TB SSD M.2 2280 PCIe 4.0×4 NVMe, 15.6″ WQHD (2560×1440) IPS 300nits Anti-glare 100% sRGB 165Hz Dolby Vision FreeSync G-SYNC, NVIDIA GeForce RTX 3070 Ti 8GB , Boost Clock 1485MHz, TGP 140W, Wi-Fi 6E 11ax 2×2 + BT5.1, FHD 1080p with E-shutter, Windows 11 Home 64

---

Purpose-built for gamers
– Play with purpose on the latest AMD Ryzen™ 6000 Series processors
– Enjoy AAA graphics with NVIDIA® GeForce RTX™ 30 series GPUs
– Experience next-gen performance from DDR5 memory
– Execute quick reflexes on a 15.6″ screen with up to WQHD resolution & 165Hz refresh rate
– Overclock your game without burning out with Legion Coldfront 4.0 cooling

---

Design
Market positioning	Gaming
Form factor	Clamshell
Colour name	Storm Grey
Product colour	Grey
Product type	Laptop

Display
Maximum refresh rate	165 Hz
Display brightness	300 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:9
Panel type	IPS
HD type	Wide Quad HD
Touchscreen	No
Display resolution	2560 x 1440 pixels
Display diagonal	39.6 cm (15.6″)

Processor
Motherboard chipset	AMD SoC
Processor cores	8
Processor boost frequency	4.7 GHz
Processor frequency	3.2 GHz
Processor model	6800H
Processor generation	AMD Ryzen 7 6th Gen
Processor family	AMD Ryzen™ 7
Processor manufacturer	AMD

Memory
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory form factor	SO-DIMM
Memory clock speed	4800 MHz
Internal memory type	DDR5-SDRAM
Internal memory	32 GB

Storage
Card reader integrated	No
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express
SSD capacity	1 TB
Number of SSDs installed	1
Total SSDs capacity	1 TB
Storage media	SSD
Total storage capacity	1 TB

Graphics
Discrete graphics memory type	GDDR6
Discrete graphics card memory	8 GB
On-board graphics card model	AMD Radeon 680M
On-board GPU manufacturer	AMD
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Speaker power	2 W
Number of built-in speakers	2
Audio system	Nahimic Audio
Audio chip	Realtek ALC3287

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Front camera	Yes

Network
Bluetooth version	5.2
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN	Yes
Antenna type	2×2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Mobile network connection	No
Bluetooth	Yes

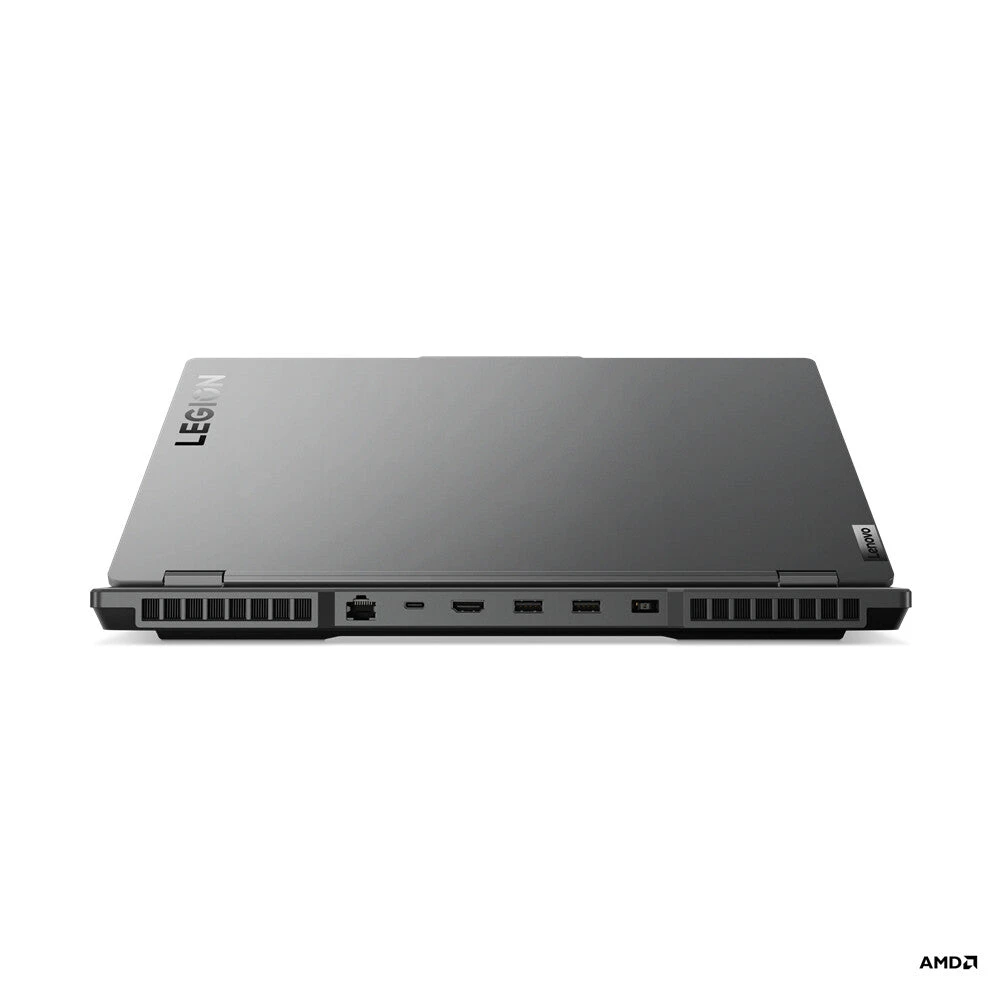

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3

Keyboard
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	UK English
Pointing device	Touchpad

Software
Trial software	Office
Operating system architecture	64-bit
Operating system installed	Windows 11 Home

Battery
Fast charging	Yes
Battery life (max)	10.8 h
Battery capacity (Watt-hours)	80 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter power	300 W

Security
Password protection type	Power on, Supervisor, HDD
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Fingerprint reader	No

Operational conditions
Storage relative humidity (H-H)	5 – 95%
Operating relative humidity (H-H)	8 – 95%
Storage temperature (T-T)	5 – 43 °C
Operating temperature (T-T)	5 – 35 °C

Certificates
Certification	ErP Lot 3

Sustainability
Sustainability certificates	RoHS

Weight & dimensions
Height	20 mm
Depth	262.4 mm
Width	358.8 mm
Weight	2.4 kg

General
Product family	Legion
