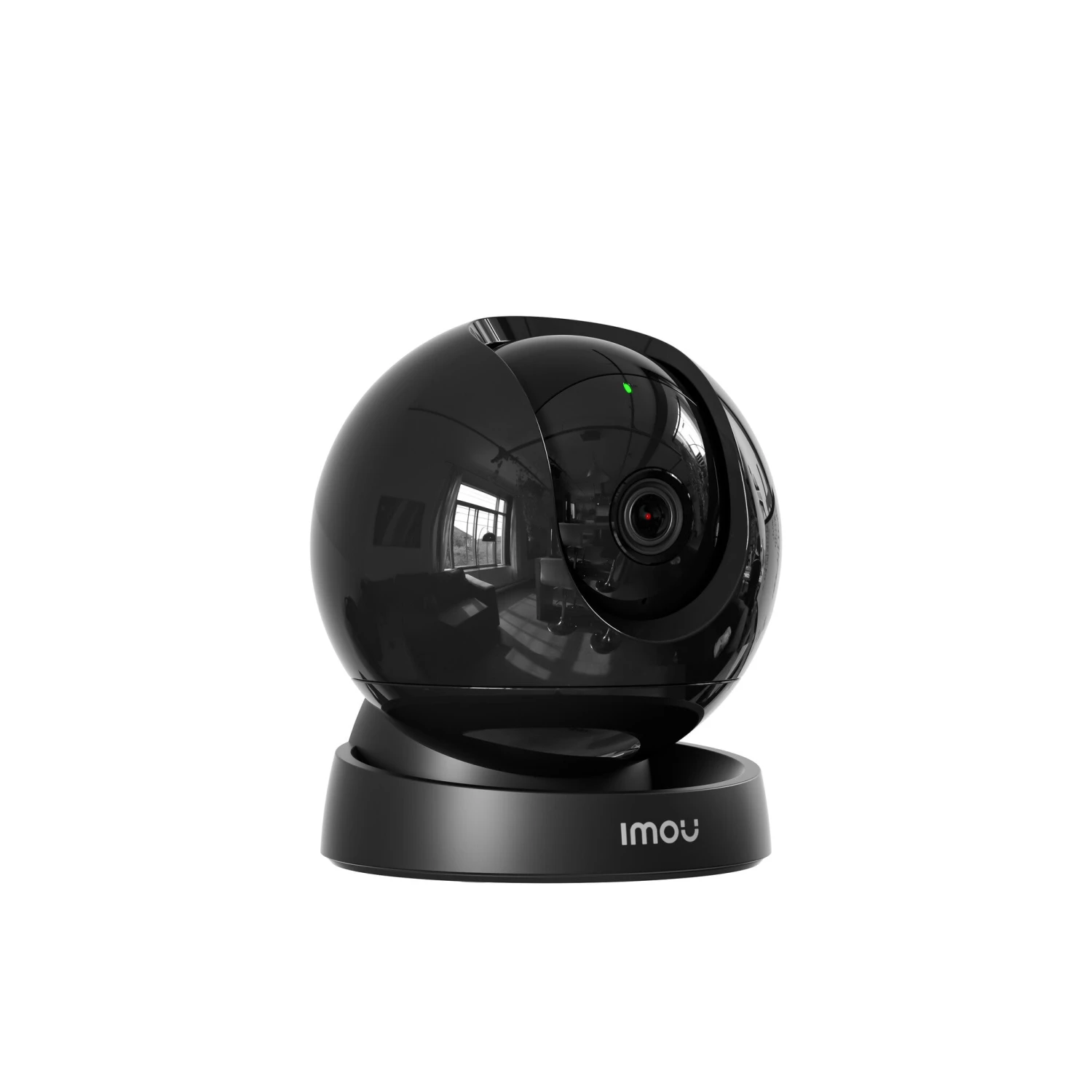

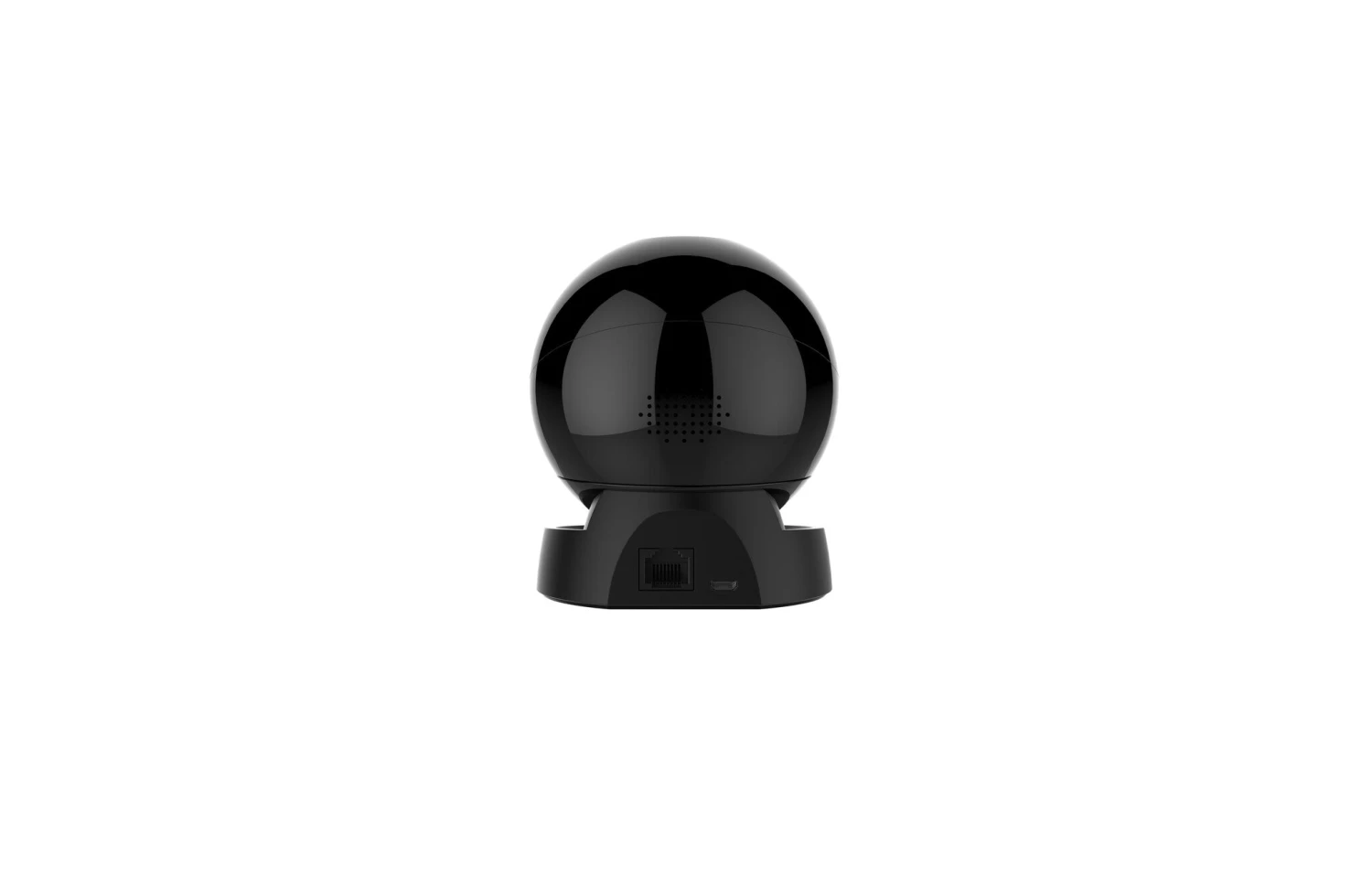

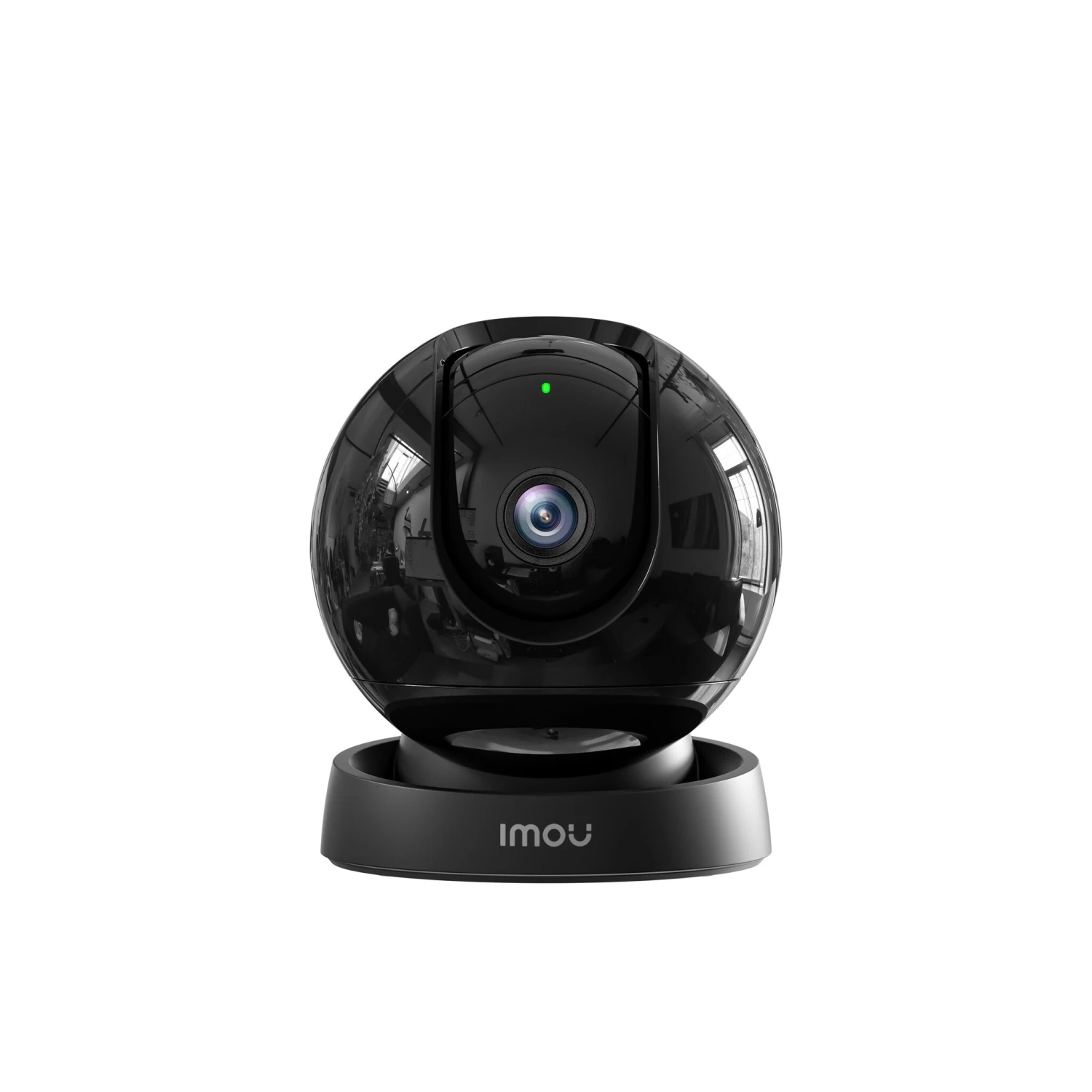

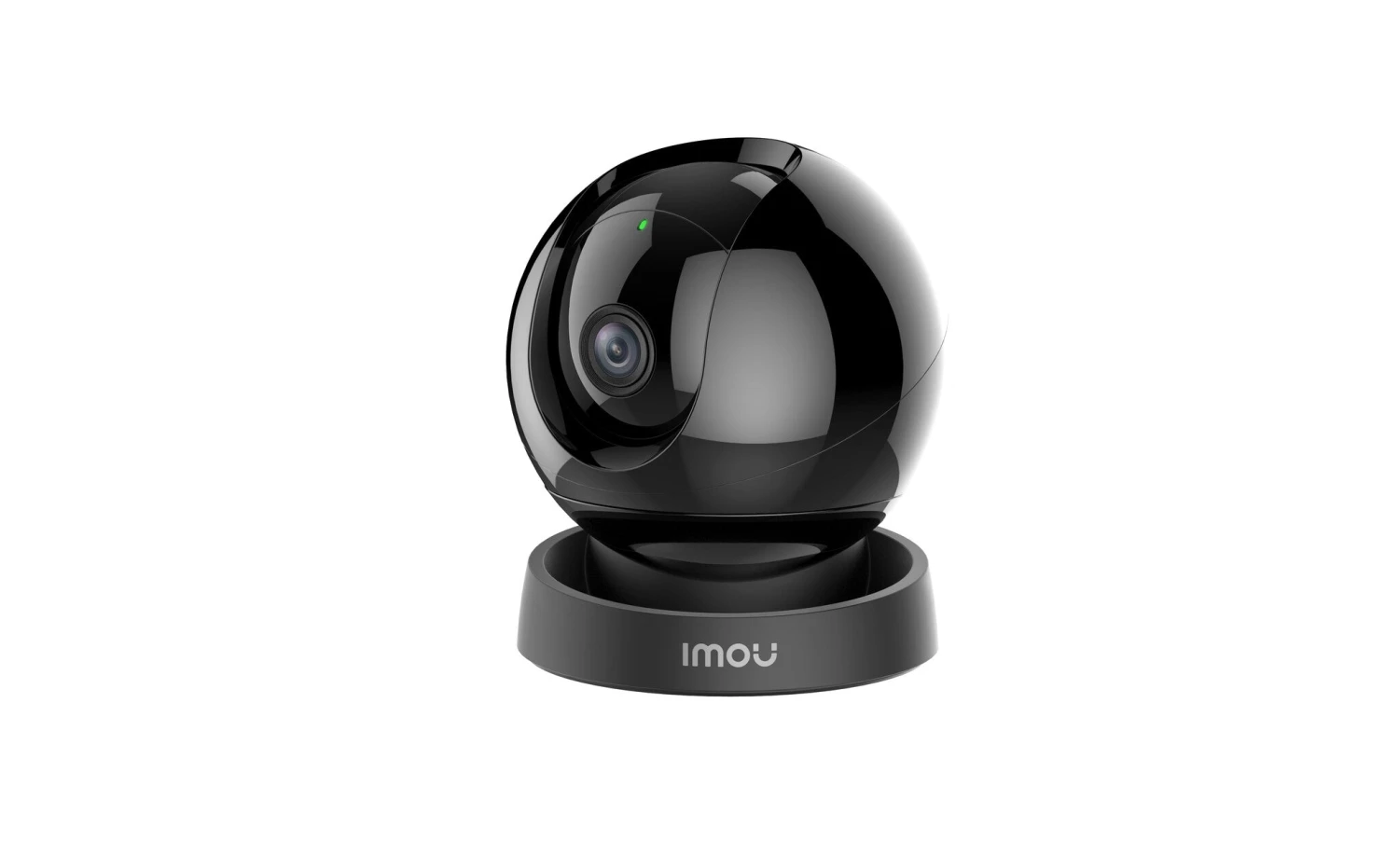

IMOU Rex 3D, 2K/3MP, Indoor Pan & Tilt Smart Wi-Fi Plug-In Security Camera

IMOU Rex 3D, 2K/3MP, Indoor Pan & Tilt Smart Wi-Fi Plug-In Security Camera

---

Imou Rex 3D 2K. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Desk, Product colour: Black, Form factor: Spherical. Lens viewing angle, horizontal: 83°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Lens diameter: 3.6 mm

---

Performance
Maximum operating distance	50 m
Auto-tracking	Y
Connectivity technology	Wired & Wireless
Placement supported	Indoor
Type	IP security camera

Design
LED indicators	Y
Product colour	Black
Mounting type	Desk
Form factor	Spherical

Camera
Pan range	0 – 355°
Tilt angle range	0 – 90°
Lens viewing angle, diagonal	102°
Lens viewing angle, vertical	46°
Lens viewing angle, horizontal	83°

Image sensor
Progressive scan	Y
Optical sensor size	25.4 / 2.8 mm (1 / 2.8″)
Sensor type	CMOS

Lens system
Lens diameter	3.6 mm
Zoom capability	Y
Number of lenses	1

Night vision
Night vision distance	10 m
Night vision	Y

Video
Frame rate	30 fps
Video compression formats	H.264, H.265
Total megapixels	3 MP
Maximum resolution	2304 x 1296 pixels

Audio
Built-in microphone	Y
Audio system	2-way
Built-in speaker(s)	Y

Network
Frequency band	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Fast Ethernet
Bluetooth	N
Wi-Fi	Y
Ethernet LAN	Y

Storage
Maximum memory card size	256 GB
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Y
Built-in HDD	N

Ports & interfaces
USB port	Y
Ethernet LAN (RJ-45) ports	1

Security
Intelligent Video Surveillance (IVS) system features	Abnormal sound detection, Human detection, Pet detection
Privacy protection	Y
Configurable region	Y
Video motion detection	Y
Alert notification type	Text alert message
Built-in siren	Y

Management features
Reset button	Y

Power
DC output current	1 A
DC output voltage	5
Power consumption (typical)	5 W
Power source type	USB

Operational conditions
Operating relative humidity (H-H)	0 – 95%
Operating temperature (T-T)	-10 – 45 °C

System requirements
Mobile operating systems supported	Android, iOS

Weight & dimensions
Weight	206 g
Diameter	9 cm
Height	104 mm

Packaging content
AC adapter included	Y
Manual	Y
Screws included	Y
Cables included	USB
Number of cameras	1

Technical details
Sustainability certificates	CE
Sustainability compliance	Y
