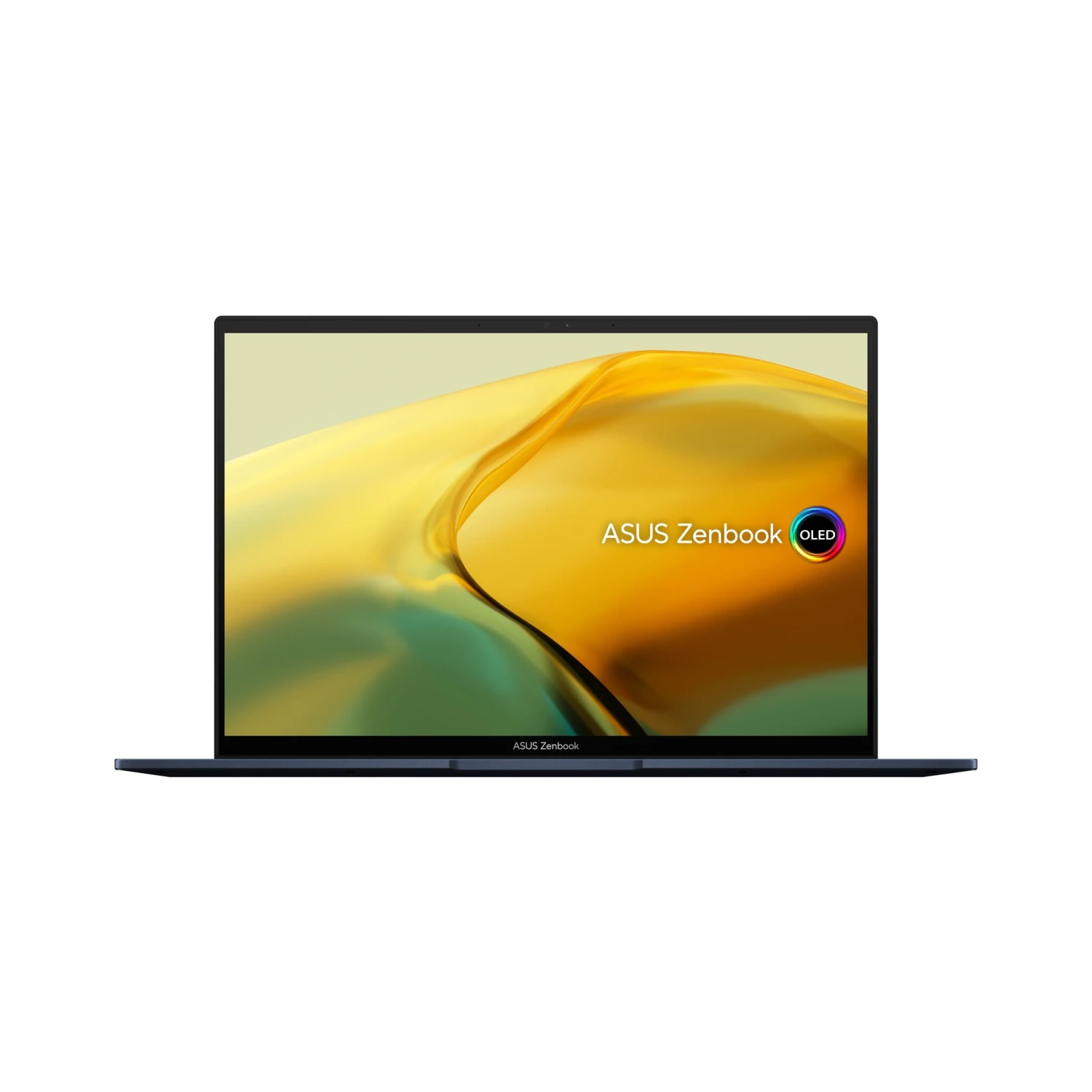

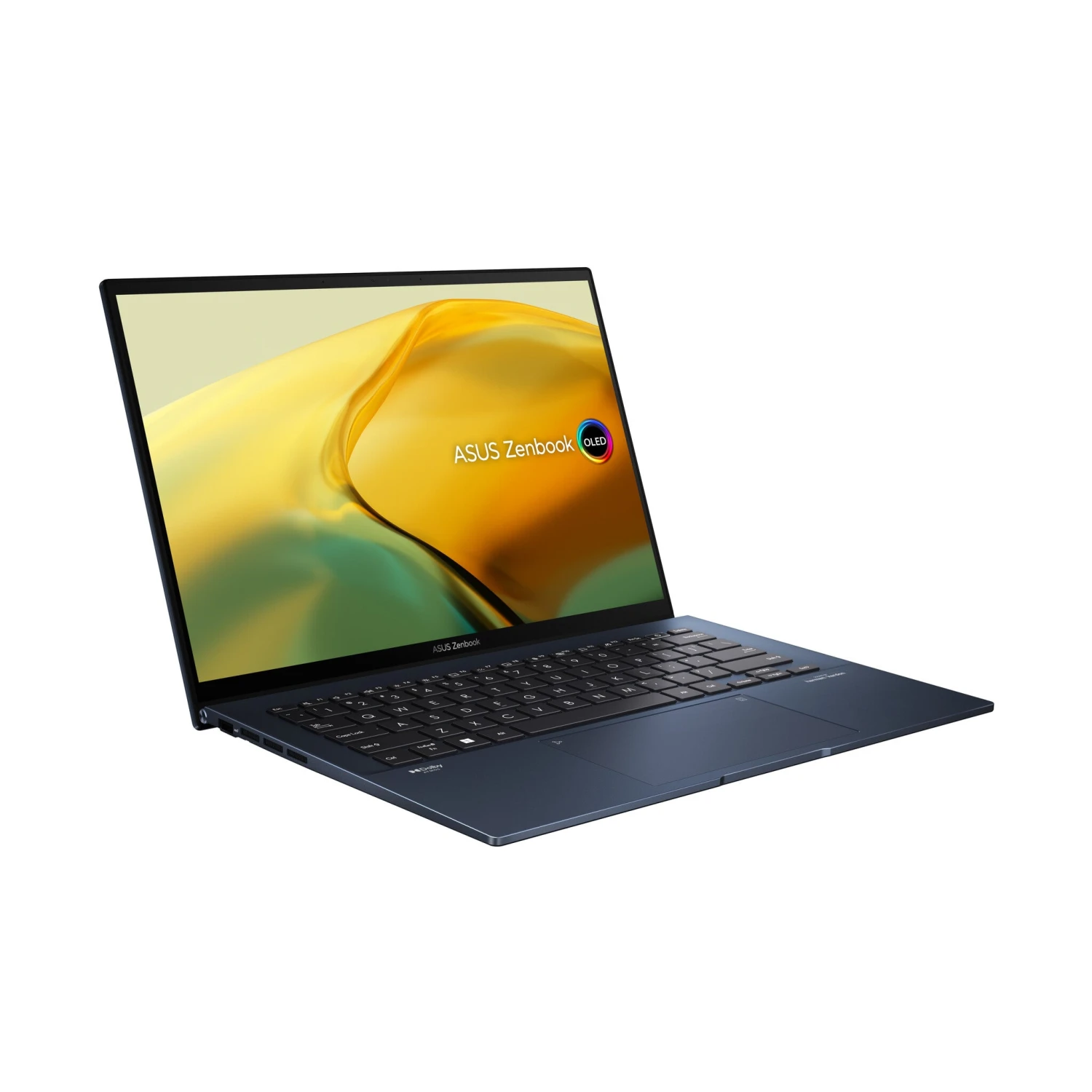

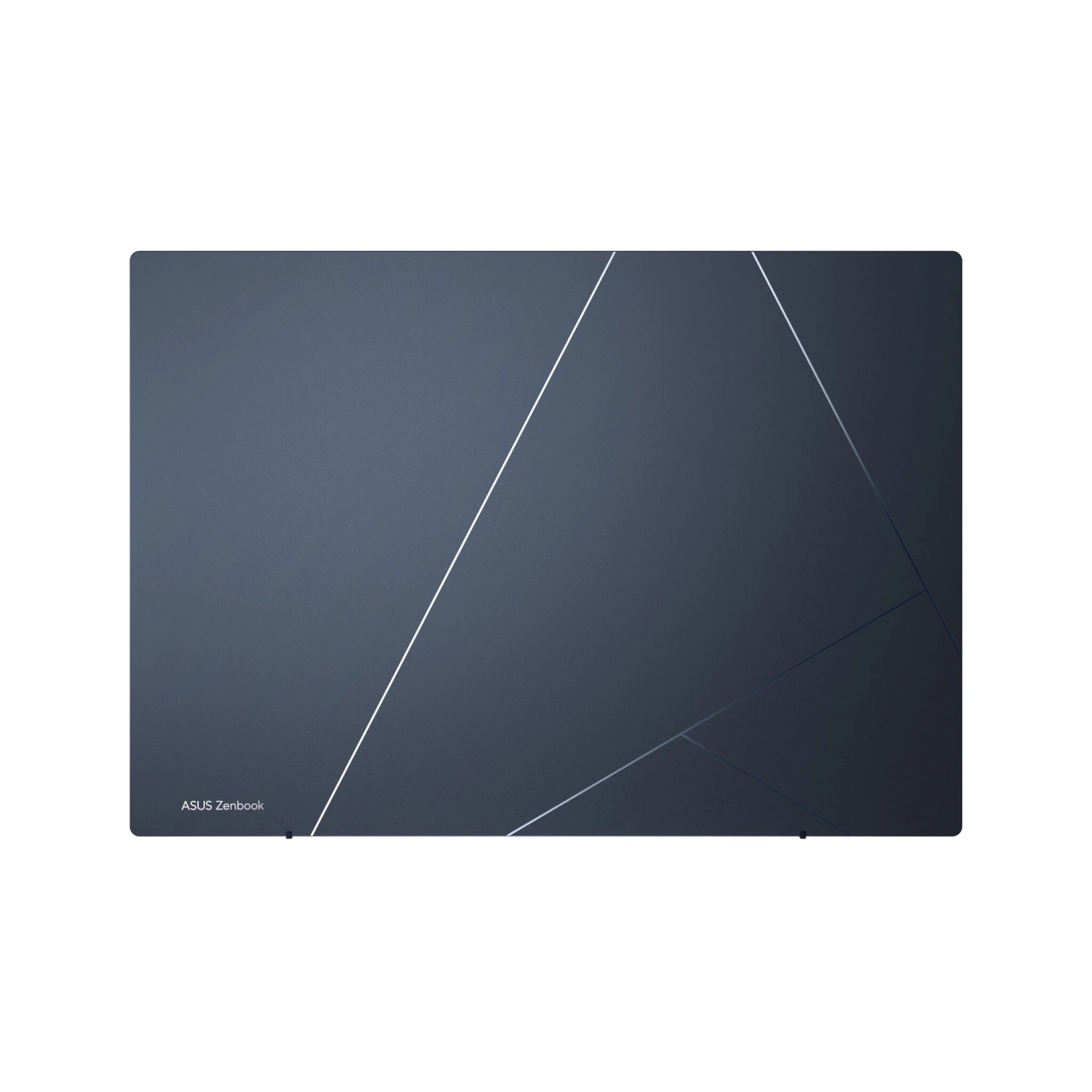

ASUS ZenBook 14 OLED UX3402ZA-KN224W Laptop 35.6 Cm (14″) Touchscreen 2.8K Intel® Core™ I5 I5-1240P 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Blue

Intel Core i5-1240P (12MB Cache, 1.7GHz), 16GB LPDDR5-SDRAM, 512GB SSD, 35.6 cm (14″) 2.8K 2880 x 1800 OLED Touch, Intel Iris Xe Graphics, WLAN, Webcam, Windows 11

---

ASUS ZenBook 14 OLED UX3402ZA-KN224W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1240P, Processor frequency: 1.7 GHz. Display diagonal: 35.6 cm (14″), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. Operating system installed: Windows 11 Home. Product colour: Blue

Power and Elegance, Reimagined

The powerful and compact Zenbook 14 OLED is just 16.9 mm slim and 1.39 kg1 light, with a breathtaking new design that’s timelessly elegant yet totally modern. You’ll experience perfect visuals from the expansive 16:10 2.8K OLED HDR NanoEdge touchscreen2,3,4, a color-accurate up to 550-nit screen that’s PANTONE® Validated and has a cinema-grade 100% DCI-P3 gamut. The 12th Gen Intel® Core™ processor, Intel Iris® Xe graphics, 16 GB RAM and 1 TB PCIe 4.0 SSD deliver superb performance, and there’s a long-lasting 75 Wh battery. For extraordinary sound, there’s a Dolby Atmos sound system powered by a smart amplifier. The user-centric design includes one-touch login with a fingerprint sensor on the power button, the new ASUS ErgoSense keyboard, and the efficient ASUS NumberPad 2.0. The bold new lid design is inspired by timeless Kintsugi craftsmanship, and it’s available in two fresh new colors: Ponder Blue and Aqua Celadon. Zenbook 14 OLED is the new benchmark for portable perfection.

MOBILITY
Portable perfection
Designed for a sublime on-the-go experience, Zenbook 14 OLED packs a premium specification and a full set of I/O ports into a compact, slim and lightweight all-aluminum chassis that’s ready to go with you anywhere. Say hello to your new favorite traveling companion.

BATTERY
Non-stop stamina
There’s no need to panic if power outlets are in short supply: Zenbook 14 OLED’s long-lasting 75 Wh battery can keep you productive.

PERFORMANCE
Powerfully productive
Whatever you need to do, Zenbook 14 OLED is primed and ready, featuring all the multitasking power of the latest 12th Gen Intel® Core™ processors combined with 16 GB RAM and Intel Iris Xe graphics. Ultrafast PCIe 4.0 x4 SSDs take care of your storage needs, and the latest WiFi 6E (802.11ax) gives you gigabit-class wireless connections.

ASUS INTELLIGENT PERFORMANCE TECHNOLOGY
The ultimate performance boost
ASUS Intelligent Performance Technology (AIPT) is an ultra-efficient thermal design and power-saving solution. It uses ASUS exclusive algorithms combined with between five and nine smart sensors, an aerodynamic IceBlades fan design and a 65-watt power supply to intelligently increase CPU performance with improved stability, while allowing all-day battery life and a quieter and cooler laptop. With ASUS Intelligent Performance Technology, your laptop can run in high-performance status as long as you need.

WiFi CONNECTIVITY
Fine-tuned with ASUS WiFi Master Premium technology
ASUS offers a comprehensive range of wireless connectivity solutions. WiFi 6E is the latest and fastest WiFi standard, and Zenbook 14 OLED enhances its performance even further with ASUS WiFi Master Premium technology. This includes ASUS WiFi Stabilizer, which gives your WiFi connections rock-solid stability, and WiFi Stabilizer to filter out wireless interference, so you’ll always enjoy the fastest possible speeds. Additionally, WiFi SmartConnect automatically selects the best WiFi source, so Zenbook 14 OLED connects seamlessly to the best WiFi signal and known mobile hotspots.

DISPLAY
See more, beautifully
The expansive 16:10 2.8K OLED NanoEdge touchscreen on Zenbook 14 OLED delivers incredibly detailed visuals with ultra-vivid colors. The NanoEdge design has ultra-slim bezels and a 90% screen-to-body ratio, which in turn gives Zenbook 14 OLED its svelte and compact form factor. For superb color accuracy, the display is PANTONE® Validated, and the DisplayHDR™ True Black 500 certification means it displays the deepest possible blacks. It also cares for your eyes during long screen sessions, with low blue-light levels that are certified by both SGS and TÜV Rheinland.

ASUS OLED DISPLAY
An OLED cinema in your hands
Zenbook 14 OLED’s display has a best-in-class color gamut. It reproduces colors with superb real-life accuracy for professional-grade visuals, making it perfect for professional and creative work, or anyone who simply wants to enjoy the very best color fidelity. An OLED display, due to the nature of the special organic light-emitting compounds it uses, reduces harmful blue light by up to 70%7 compared to LCD displays, making it extra gentle on your eyes to reduce the risk of retinal damage.

AUDIO
Break the sound barrier
For unrivaled audio quality, Zenbook 14 OLED has a Dolby Atmos stereo sound system that’s certified by the audio experts at Harman Kardon. It delivers powerful, immersive sound that’s crystal-clear, with the multi-dimensional soundscape of Dolby Atmos. It immerses you in your favorite entertainment with sound that moves all around you with breathtaking realism in music, movies and TV.

Smart Amp — 350% louder sound, zero distortion
The volume-enhancing, distortion-suppressing dual-channel smart amplifier is equipped with a powerful DSP chip that can drive the twin speakers at the maximum volume possible while preventing long-term damage to the sensitive speaker voice coils. Creating or listening to audio in your videos, movies, music or games has never sounded better!

KEYBOARD AND TOUCHPAD
Brilliantly nuanced ErgoSense keyboard and touchpad
It’s our mission at ASUS to elevate human interaction with technology to a higher and more intuitive level than ever before. The latest ASUS ErgoSense keyboard and touchpad are engineered to enable an unrivaled input experience that’s in harmony with how you move, feel and touch. Your comfort is our highest priority. That’s why the ErgoSense keyboard has an incredibly satisfying feel, with the optimum bounce and travel calculated with fine-tuned precision. Scrolling on our ErgoSense touchpad is just like touching silk. Its surface has a special low-friction coating that’s also fingerprint resistant, keeping your work area as clean as new.
Experience the ErgoSense keyboard and touchpad, and you’ll soon find yourself cruising effortlessly through your work.

Full-sized keyboard
19.05 mm
It’s time to say hello to ErgoSense, and goodbye to cramped laptop keyboards! The full-size 19.05 mm key pitch is the same as a desktop keyboard, so you can whizz through your work with superb typing comfort and accuracy.

Dished key caps
0.2 mm
The 0.2 mm key-cap dish is designed to match the shape of your fingertips. The smooth-edged indent is carefully crafted for a comfortable yet precise feel, so your fingers are gently guided to the ideal contact point with the keys.

Long key travel
1.4 mm
Good tactile feedback is important to let you know that your key press has been registered. The long 1.4 mm key travel lets you type without having to use too much force. And underneath the key, there’s a rubber dome crafted by keyboard experts here at ASUS. It guarantees your click force is met with just the right tactile bump you need for a nice grip.

Ultra-smooth touchpad
The hydrophobic coating applied to our touchpad has a high water-contact angle. This means the nanotech-like surface provides smoother feedback for every scrolling movement. It’s like touching silk!

Anti-fingerprint touchpad
We apply a high-end PVD anti-fingerprint coating that ensures excellent resistance to wear and tear. This coating also makes the surface really easy to clean. And even after more than 10,000 slides, the touchpad will still be as smooth as new.

USER EXPERIENCE
Thoughtful design
We go the extra mile to give you a more effortless and joyful experience, at work or play.

Dedicated function keys
Pressing F9 toggles the mic on or off, and the F10 key controls the webcam shield.

One-touch login
The fingerprint sensor integrated into the power button allows easy and secure one-touch login.

ASUS NumberPad 2.09
For easy number-crunching, the touchpad includes the ASUS NumberPad 2.0 numeric keypad.

WEBCAM
Real-time webcam image optimization
ASUS 3D Noise Reduction (3DNR) Technology and the new webcam effects in MyASUS take your video-calling experience to the next level. 3DNR significantly upgrades the webcam image clarity, with a unique algorithm that sharpens images and performs real-time de-noising to make sure everything looks crisp and clear during video calls. The webcam effects in MyASUS add several useful image-processing features, including Background Blurring for enhanced privacy; Lighting Optimization to keep faces out of shadow; Motion Tracking to always keep you center-frame; and Eye Tracking to reduce the effect of your eyes wandering away from the camera.

NOISE CANCELATION
Next-level AI noise-canceling audio technology
With the increase of remote work and video conferences, we’ve implemented ASUS AI noise-canceling audio technology to ensure the best experience. This employs machine learning in order to isolate unwanted noise from human speech. The ClearVoice Mic feature in the MyASUS app can filter out ambient noise, and normalize all individual voices in Multi-presenter mode from different positions for optimum group conference-call quality. The ClearVoice Speaker feature filters out all ambient noise apart from human speech — so you’ll hear what everyone else is saying.
Try the demo to experience the amazing difference in different environment that ASUS AI noise-canceling technology can make.

CONNECTIVITY
Convenient connections
Zenbook 14 OLED is packed with all the I/O ports you need for easy connectivity to your devices and peripherals. The latest ultrafast Thunderbolt™ 4 USB-C® ports support fast charging, 4K UHD external displays and up to 40 Gbps10 data transfers, and there’s also an HDMI® port and a USB 3.2 Gen 2 Type-A port alongside a microSD card reader. Communications and audio I/O are taken care of by the convenient audio combo jack.

EASY CHARGE
USB-C® Easy Charge11: Power anytime, anywhere
USB-C® Easy Charge support means that your Zenbook 14 OLED can be used with a wide range of standard 5-20V USB-C® chargers. You can enjoy ultrafast charging with any PD (Power Delivery) certified charger, including the 65-watt fast-charge adapter supplied with Zenbook 14 OLED, or juice up your device on the go with airline chargers, portable chargers or power banks!

SOFTWARE
Truly personalized workflow
MyASUS hosts a collection of handy ASUS apps and tools that help you get more out of your laptop, and the powerful GlideX is a cross-device screen-sharing solution. Optimize your laptop’s performance and boost your productivity with ASUS apps!

MyASUS
Your PC just got better
MyASUS provides easy access to ASUS apps that are designed to help you maintain your system, update your software, optimize your PC’s performance, and contact ASUS for after-sales service and support.

GlideX
Your on-the-go work and play space
GlideX is a cross-device screen-sharing solution that uses wired or wireless connections to give you a bigger and better space for work and play. With Screen Mirror you can project your device’s screen to PC for easier keyboard input on a bigger space; with Screen Extend you can create more space turning your tablet into a secondary display on the go. GlideX optimizes your workflow in the blink of an eye!

---

Design
Country of origin	China
Market positioning	Home
Housing material	Aluminium
Form factor	Clamshell
Colour name	Ponder Blue
Product colour	Blue
Product type	Laptop

Display
High Dynamic Range (HDR) technology	HDR True Black 500
High Dynamic Range (HDR) supported	Yes
Contrast ratio (typical)	1000000:1
Maximum refresh rate	90 Hz
Colour gamut	100%
RGB colour space	DCI-P3
Display brightness	550 cd/m²
Display surface	Gloss
Native aspect ratio	16:10
Panel type	OLED
HD type	2.8K
Touchscreen	Yes
Display resolution	2880 x 1800 pixels
Display diagonal	35.6 cm (14″)

Processor
Configurable TDP-down	20 W
Processor cache	12 MB
Processor cores	12
Processor boost frequency	4.4 GHz
Processor frequency	1.7 GHz
Processor model	i5-1240P
Processor generation	12th gen Intel® Core™ i5
Processor family	Intel® Core™ i5
Processor manufacturer	Intel

Memory
Maximum internal memory	16 GB
Memory form factor	On-board
Internal memory type	LPDDR5-SDRAM
Internal memory	16 GB

Storage
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
NVMe	Yes
SSD interface	PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Total SSDs capacity	512 GB
Storage media	SSD
Total storage capacity	512 GB

Graphics
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	Not available
Discrete graphics card	No
On-board graphics card	Yes

Audio
Built-in microphone	Yes
Speakers manufacturer	Harman Kardon

Camera
Front camera HD type	Full HD
Front camera	Yes

Network
Bluetooth version	5.0
Ethernet LAN	No
Antenna type	2×2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Mobile network connection	No
Bluetooth	Yes

Ports & interfaces
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Charging port type	USB Type-C
Combo headphone/mic port	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
HDMI version	2.1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1

Keyboard
Keyboard backlit	Yes
Numeric keypad	No
Pointing device	Touchpad

Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Home

Processor special features
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Execute Disable Bit	Yes
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
CPU configuration (max)	1
Intel® Evo™ Platform Verified	Yes

Battery
Battery capacity (Watt-hours)	75 Wh
Number of battery cells	4
Battery technology	Lithium-Ion (Li-Ion)

Power
AC adapter output voltage	20 V
AC adapter output current	3.25 A
AC adapter input voltage	100 – 240 V
AC adapter frequency	50 – 60 Hz
AC adapter power	65 W

Security
Trusted Platform Module (TPM)	Yes
Fingerprint reader	Yes

Weight & dimensions
Height	16.9 mm
Depth	220.6 mm
Width	313.6 mm
Weight	1.39 kg

Packaging data
Package weight	1.99 kg
Package height	284 mm
Package depth	410 mm
Package width	75 mm

General
Product family	ZenBook
Product series	14 OLED

Technical details
Commodity Classification Automated Tracking System (CCATS)	8471300000
