Aerocool Eclipse 12 Pro Computer Case Fan 12 Cm Black

3x 12cm ARGB Fans, H66F Hub, Remote control

---

120mm fan with 6-Pin connector featuring a stylish RGB LED Dual Slim Ring Lighting design. Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

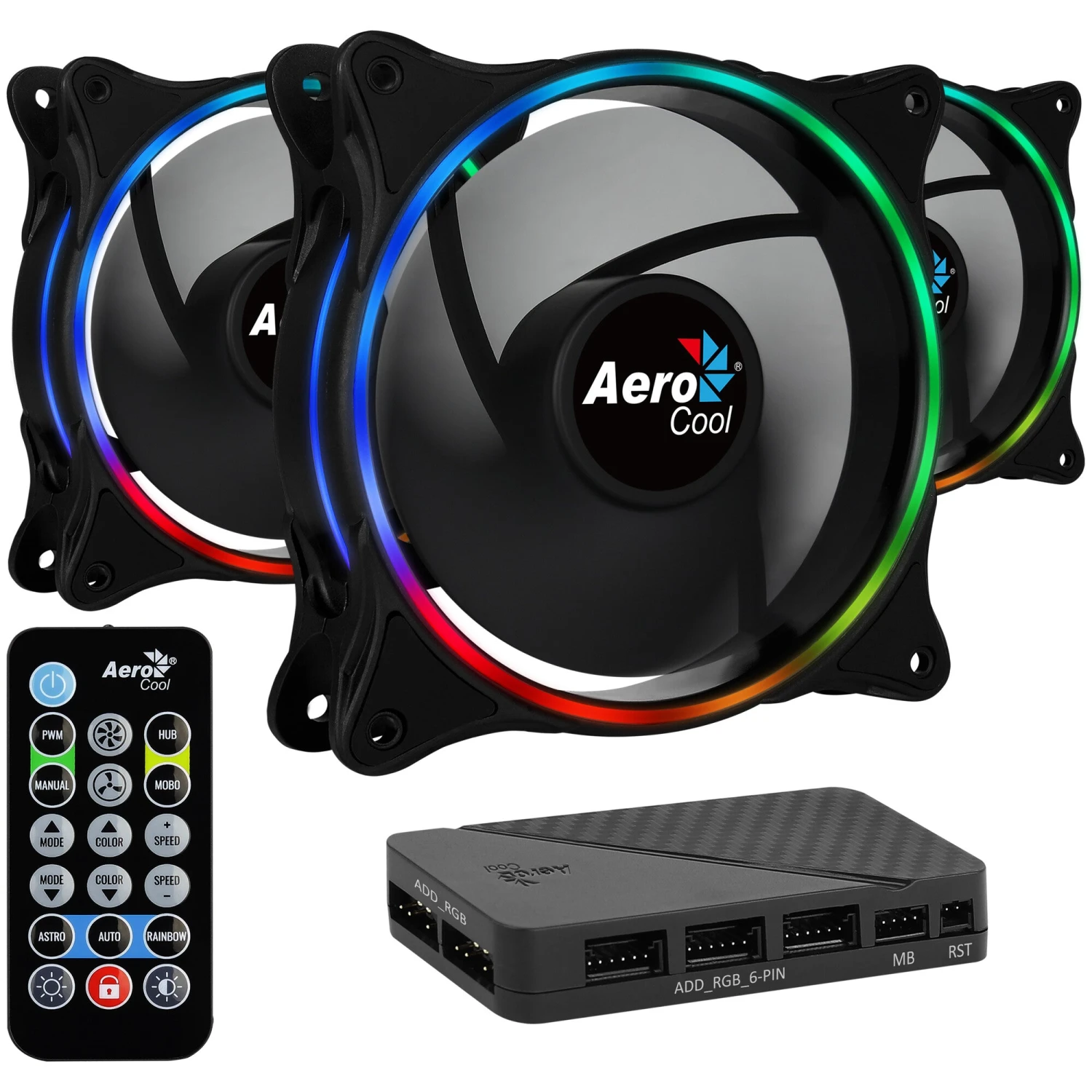

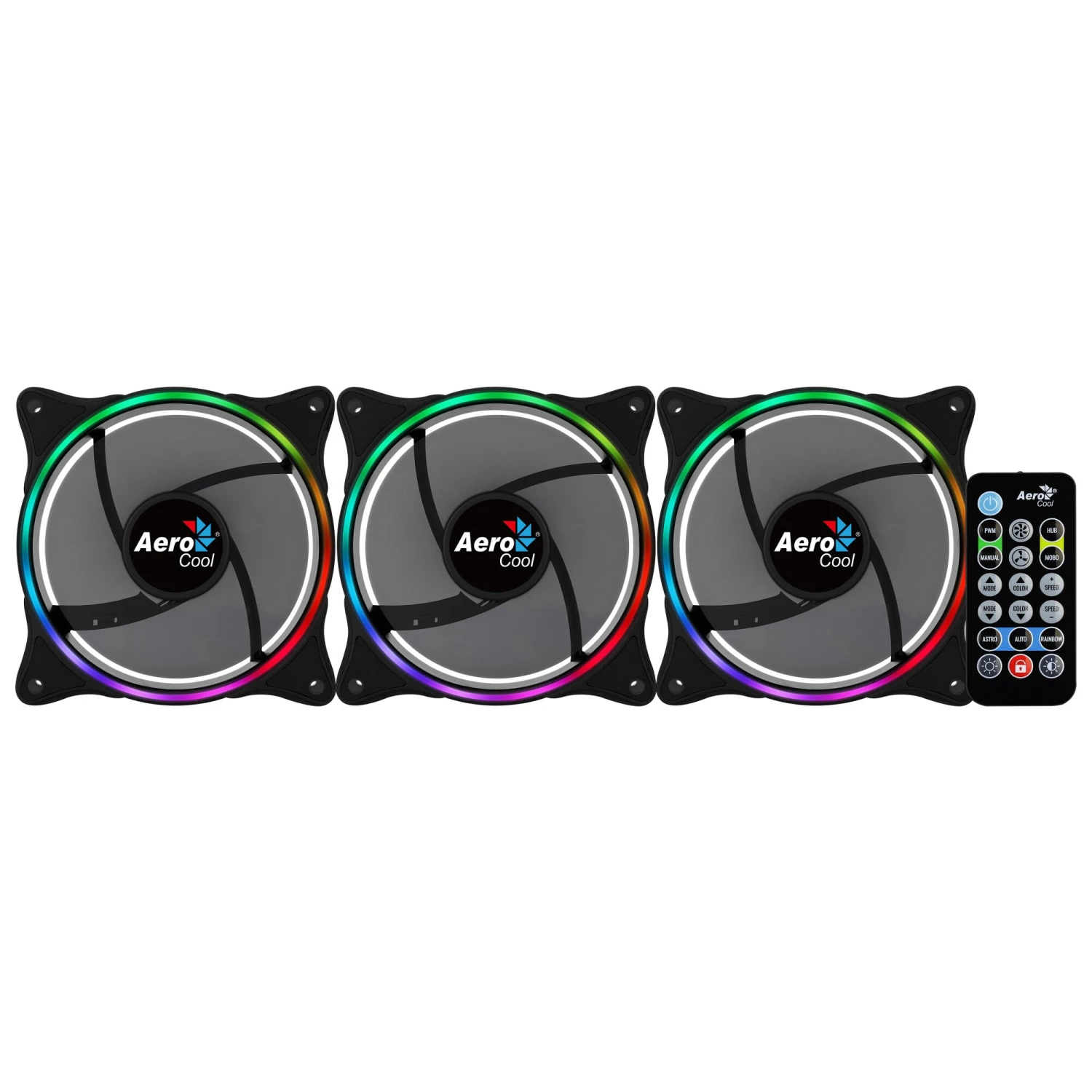

Comes equipped with three Eclipse 12 Addressable RGB fans, H66F RGB Control Hub, and Remote Control.

ADDRESSABLE RGB COMPATIBLE
Take full control of your Eclipse 12 Addressable RGB fans using any one of three ways:

– ADDRESSABLE RGB MOTHERBOARD
– LED CONTROL BUTTON
– RGB REMOTE CONTROL

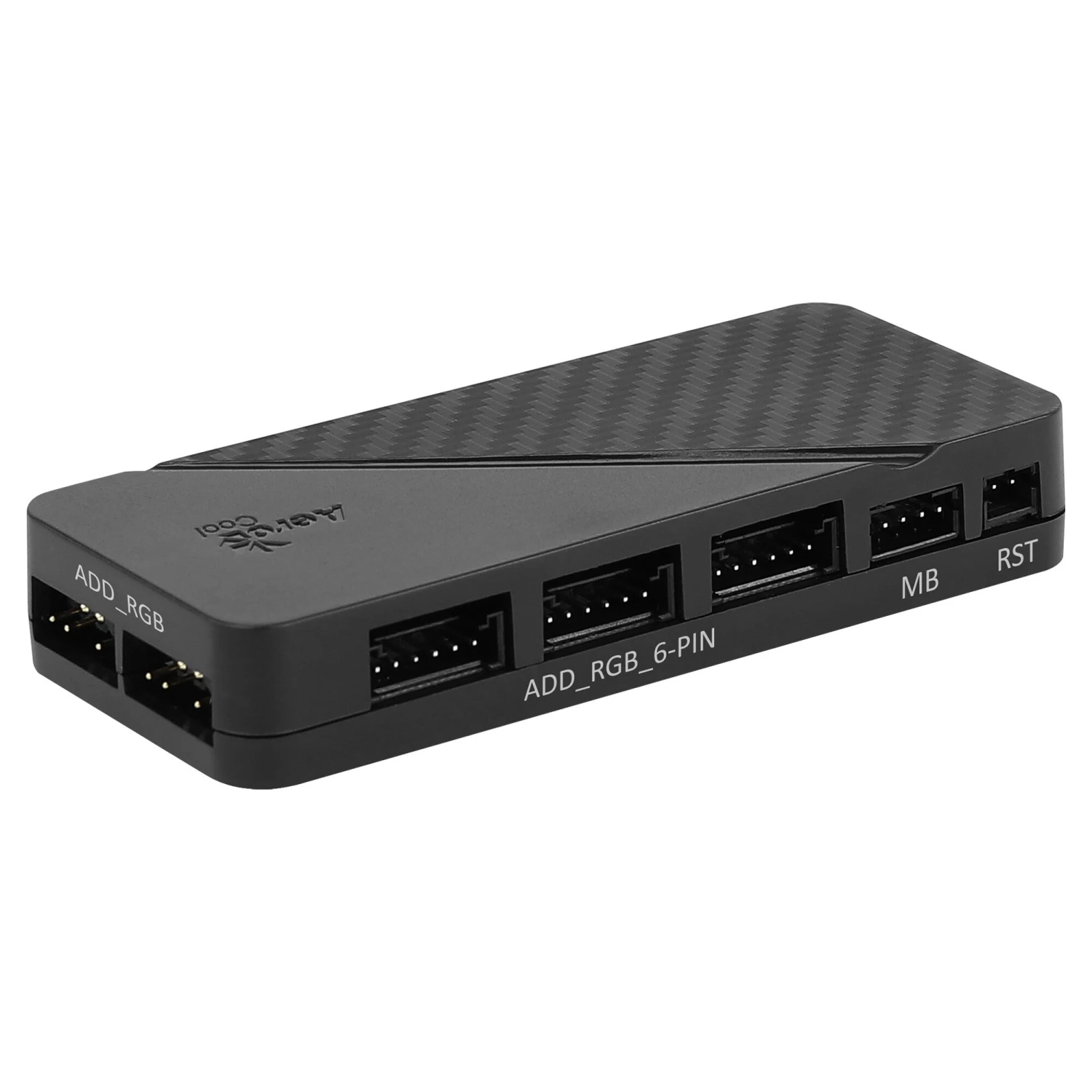

H66F RGB CONTROL HUB
Features a 6-port hub with PWM control functions that allows you to connect up to six 6-Pin Addressable RGB fans and up to two Addressable RGB accessories with 5V ARGB connector.

Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

PWM CONTROL FUNCTIONS
H66F hub comes with PWM control functions for optimized fan speed to maximize cooling efficiency and minimize noise.

Please check if the 4-Pin fan header on your motherboard is PWM compatible.

– PWM based – PWM compatible
– Voltage based – not PWM compatible

ADDRESSABLE RGB RECEPTOR CABLE INCLUDED
Comes with a receptor cable to connect your hub with compatible Addressable RGB motherboards.

– ARGB MB Connector (For all other ARGB MBs such as ASUS, MSI, etc.)
– ARGB MB Connector (Gigabyte RGB Fusion)
– 4-Pin Hub Connector
– PWM 4-Pin Connector

POWER CABLE INCLUDED
Comes with a cable to power the hub.
– SATA Power Connector
– 4-Pin Hub Power Connector

RGB LED DUAL SLIM RING LIGHTING
Equipped with RGB LED Lighting to give your rig stylish flair while providing superior cooling capabilities to improve performance.

Dual Slim Ring Lighting Design with LED rings as thin as 2mm delivers a truly unique way to keep your system cool, in more ways than one.

CURVED FAN BLADES
Curved fan blades effectively direct airflow to increase air pressure and reduce air resistance for maximum cooling performance.

ANTI-VIBRATION PADS
Anti-vibration pads absorb and dampen vibrations caused by fan rotation.

COMES WITH 6-PIN CONNECTOR
Connects to H66F RGB Control Hub. Compatible with Tor, Tor Pro, and Klaw cases.

---

Performance
Mean time between failures (MTBF)	60000 h
Bearing type	Hydraulic
Maximum air pressure	1.27 mmH2O
Maximum airflow	32.1 cfm
Noise level (high speed)	19.8 dB
Rotational speed (max)	1200 RPM
Compatible processor series	Not supported
Supported processor sockets	Not supported
Fan diameter	12 cm
Type	Fan
Suitable location	Computer case

Design
Fan connector	6-pin
Illumination colour	Multi
Illumination LED	Yes
Number of fan blades	7
Number of fans	3 fan(s)
Product colour	Black

Power
Rated current	0.6 A
Starting voltage	6 V
Rated voltage	12 V
Power consumption (typical)	7.2 W

Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm

Packaging content
Remote control included	Yes
Screws included	Yes

Other features
Harmonized System (HS) code	84733080
