Aerocool Aero Bronze 850M Power Supply Unit 850 W 20+4 Pin ATX Black

850W, 20+4 pin ATX, 80PLUS Bronze 230V

---

Featuring an updated design with new 12-Pin connector, this PSU supports Nvidia® Geforce RTX 30 series graphics cards including Founder’s Edition. Built with best in class protections and impressive performance while offering one-of-a-kind affordability, the AERO PSU series is perfect for DIY PC builders who want a top-class power supply without breaking the bank.

The AERO BRONZE is 80Plus 230V EU Certified for up to 90%+ efficiency, delivering maximum efficiency performance.

UP TO 90%+ EFFICIENCY
80Plus 230V EU Bronze Certified for high efficiency performance.

SUPPORTS RTX 30 SERIES GPUs
Updated design for Nvidia® Geforce RTX 30 series graphics cards.

– Supports Nvidia Founder’s Edition RTX 30 series graphics cards via new 12-Pin connector
– Compatible with 3rd party versions of super high-end graphics cards via three individual PCIe 8-Pin connectors

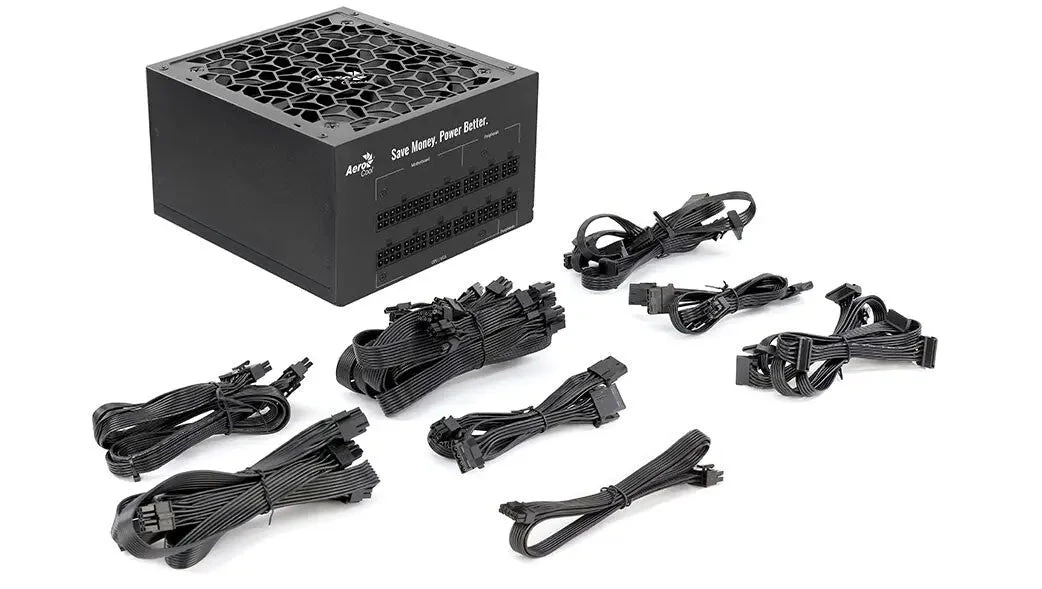

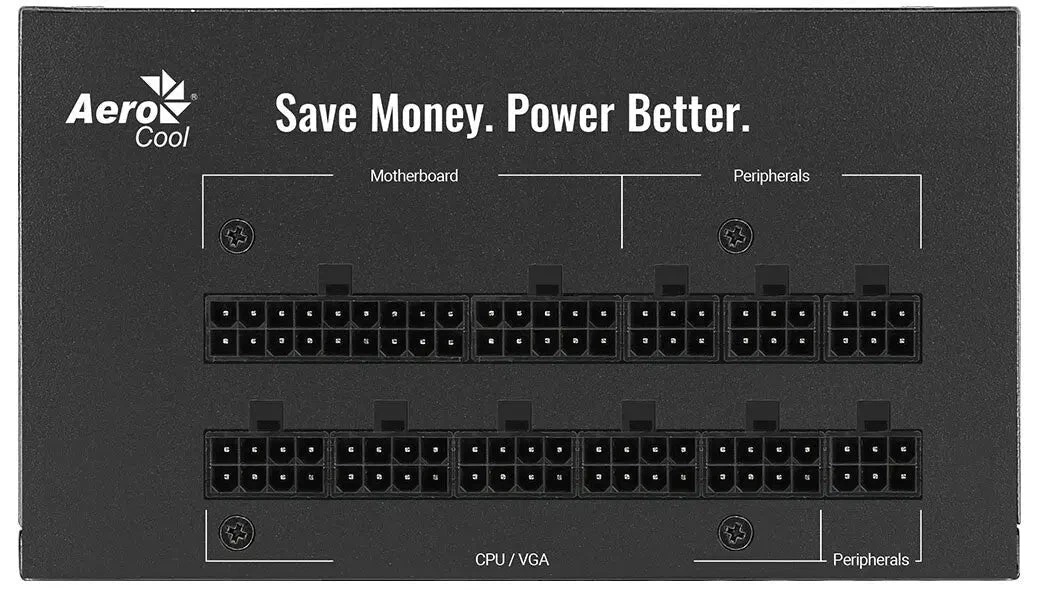

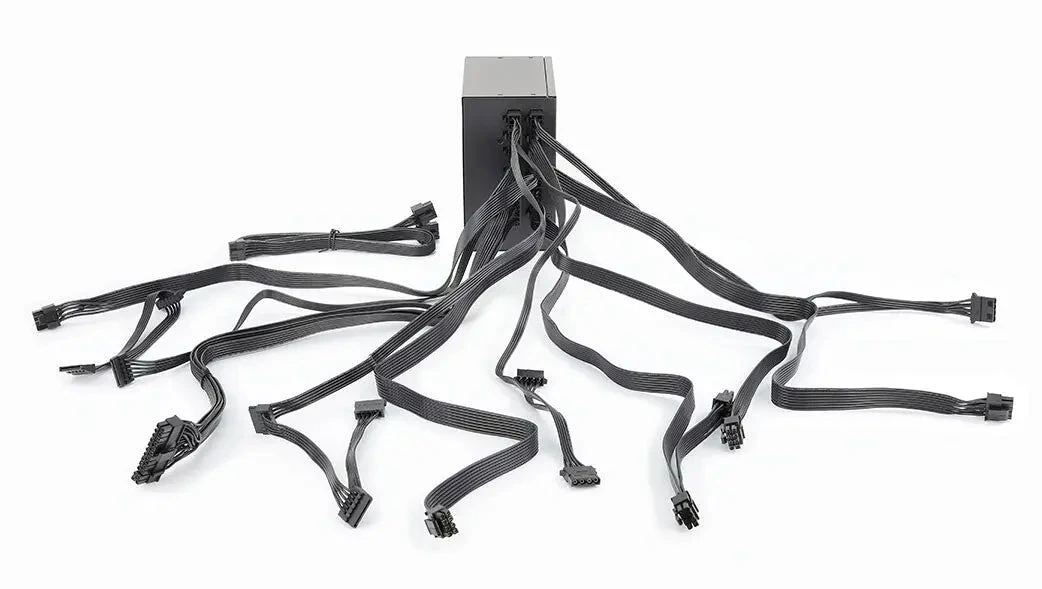

FULL MODULAR POWER SUPPLY
Fully modular design provides you with full control of your cables, allowing for super efficient cable management and improved air flow to achieve the best possible cooling performance.

TESTED FOR RELIABILITY AND PERFORMANCE
Having undergone test after test under strict conditions and the highest standards of quality, the AERO PSU ensures premium reliability, durability, and performance.

ACTIVE POWER FACTOR CORRECTION
Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9.

PREMIUM 105°C JAPANESE CAPACITORS
Built-in premium 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.

Due to supply chain sourcing, premium capacitors from any of the following brands may be used: Rubycon, Nichicon, and Nippon Chemi-Con.

HIGH-END SOLID STATE CAPACITORS
High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple

DC-TO-DC CONVERSION CIRCUIT
Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.

OPTIMIZED THERMAL FAN SPEED CONTROL
Optimized fan speed allows for near inaudible fan noise and silent PSU operation.

Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.

DUAL CPU POWER CONNECTORS
Dual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs.

---

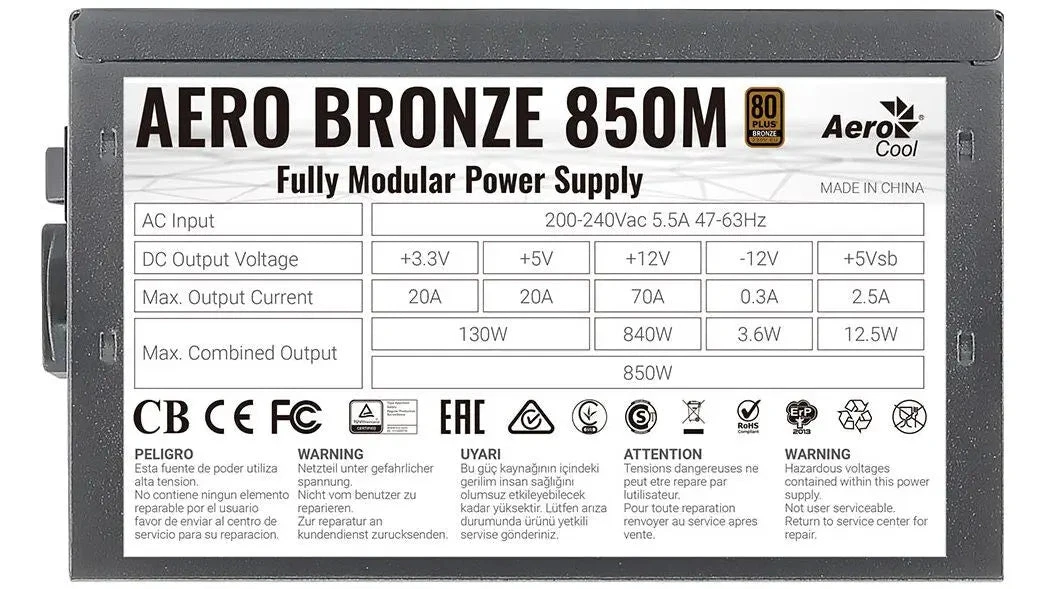

Power
Efficiency	90%
Max output current (+5Vsb)	12.5 A
Max output current (-12V)	0.3 A
Max output current (+5V)	20 A
Max output current (+12V)	70 A
Max output current (+3.3V)	20 A
Combined power (+5Vsb)	12.5 W
Combined power (-12V)	3.6 W
Combined power (+5V)	130 W
Combined power (+12V)	850 W
Combined power (+3.3V)	130 W
Input current	5.5 A
AC input frequency	47 – 63 Hz
AC input voltage	200 – 240 V
Total power	850 W

Ports & interfaces
Cabling type	Fully-Modular
CPU power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
Number of PATA power connectors	4
Number of SATA power connectors	6
Motherboard power connector	20+4 pin ATX

Performance
80 PLUS certification	80 PLUS Bronze
Purpose	PC/Server

Design
Number of fans	1 fan(s)
Fan diameter	12 cm
Product colour	Black

Other features
Harmonized System (HS) code	84733020
